ABIT Fatal1ty AN8 SLI

Lássuk mit tud!

CPU
Supports AMD Socket 939 Athlon 64/64FX & Athlon 64 X2 dual-core Processors
With 2GHz system bus using Hyper Transport™ technology
Supports AMD CPU Cool 'n' Quiet Technology

Chipset
NVIDIA NF4 SLI single chip
NVIDIA Gigabit Ethernet with NVIDIA Firewall
Supports NV SATA 3G RAID

NVIDIA SLI Technology
Two PCI-Express X16 slots support NVIDIA Scalable Link Interface
Increase bandwidth of the PCI Express™ bus providing 60x the bandwidth of PCI

Memory
Four 184-pin DIMM sockets
Supports dual channel DDR400 non-ECC un-buffered memory
Supports maximum memory capacity up to 4GB

ABIT Extrák
ABIT µGuru™ 2003 Technology
ABIT OTES™ Technology
ABIT AudioMAX™ Technology
ABIT CPU ThermalGuard™ Technology

NV SATA RAID
Serial ATA 3Gbps data transfer rate
Supports SATA RAID 0/1/0+1

NV GbE LAN
NVIDIA Gigabit Ethernet
NVIDIA Secure Networking Engine

NV Firewall
Native NVIDIA Firewall

IEEE1394
Support IEEE 1394 at 400 Mb/s transfer rate

ABIT AudioMAX
High quality 7.1-channel Audio Card (tényleg tökéletes minőségű!)
Optical S/P DIF Input/Output
Supports auto jack sensing

Internal I/O Connectors
2 x PCI Express X16, 2 x PCI Express X1, 2 x PCI slots, 1 x AudioMAX
Floppy Port supports up to 2.88 MB
2 x Ultra DMA 133/100/66/33 IDE Connectors
4 x SATA 3G Connectors
3 x USB headers, 1 x IEEE 1394 header

Back Panel I/O
ABIT Dual OTES
1 x PS/2 Keyboard, 1 x PS/2 mouse
1 x IEEE 1394
4 x USB, 1 x RJ-45 LAN Connector

Méret
ATX form factor 305 x 245mm

Mi is jár az alaplaphoz?
Guru Panel uGuru könyvvel
ABIT AudioMAX Card
SLI Connector Bridge
SLI Switch
SATA kébel x 4, ATA 100 IDE kábel x 1, FDD kábel x 1
I/O shield x 1
Driver CD x 1, SATA Utility Floppy x 1
A5 standard User's Manual x 1, B5 multilingual Quick Installation Guide x 1
Jumper Setting Matrica x 1
ABIT matrica

Képek:

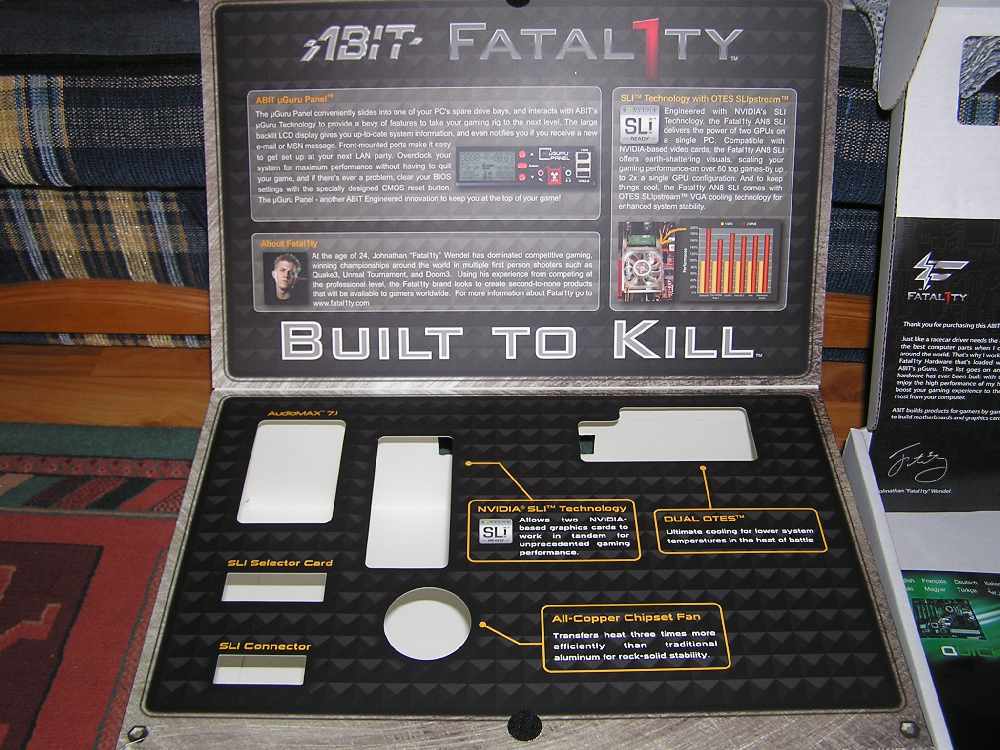

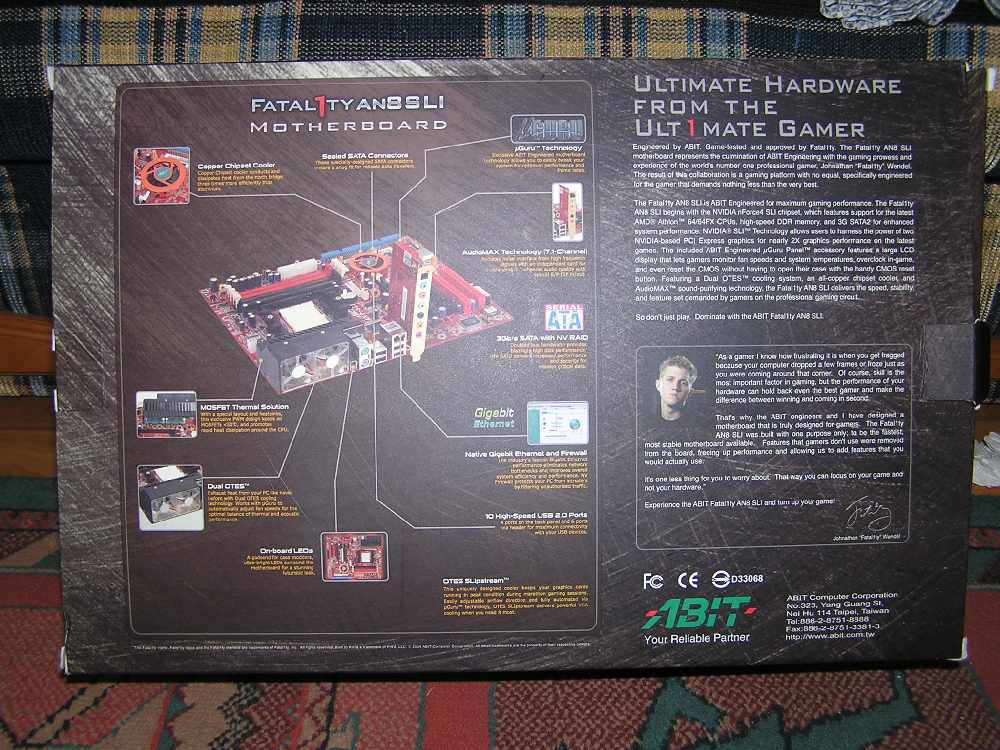

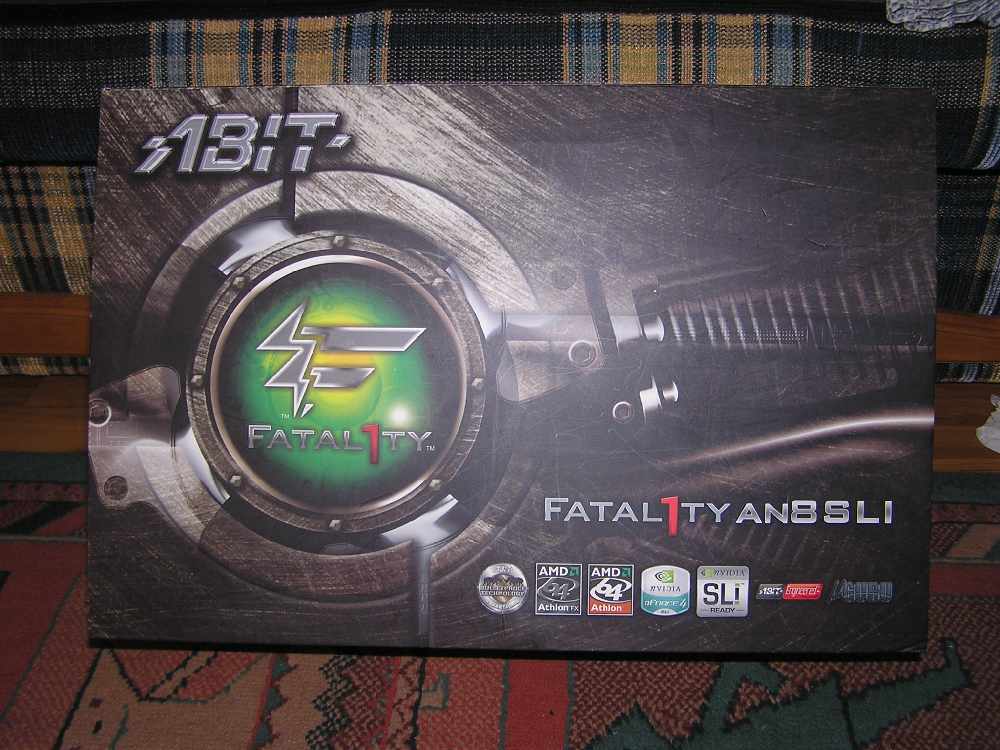

Doboz 1 2 3
Kellékek 1 2 3
