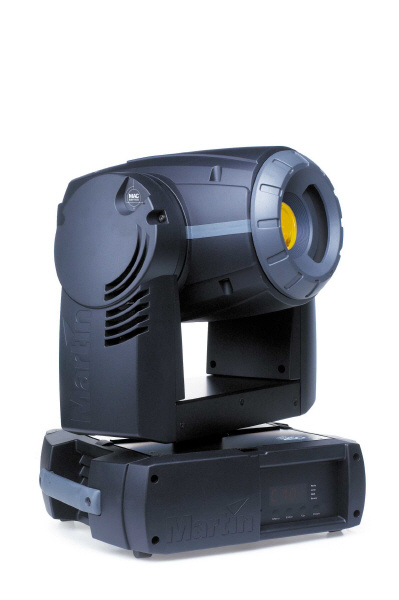

The MAC 250 Entour includes all the features of the MAC 250 Krypton plus a number
of added features, including a new achromatic lens system and additional gobo
wheel. The enhanced optical system produces unsurpassed quality imaging, which
together with the added array of graphical effects, make the Entour an even more
powerful lighting tool.
Read more
It features a specially designed dimming system for exceptionally smooth and even
dimming. By achieving new standards in light output and image quality, the Entour
is ideal for environments where powerful effects are required like stage, studio
and event applications, permanent installations and much more.
Optics
In the MAC 250 Entour, a new 17-degree achromatic lens system produces razor
sharp picture quality. A narrow angle 14-degree lens is also included with the
Entour for longer projection throws. A full range dimmer/shutter is very fast
and allows for smooth color and effect transitions through easy variation of
the light intensity. Strobe effects are possible up to 20 Hz.
New graphical capabilities
For completely fresh graphical looks, a newly designed rotating and indexing
gobo wheel offers a new selection of replaceable metal and dichroic gobos. The
16-bit precision gobo wheel houses 7 slots plus open. Gobo changes are fast
and easy. The Entour houses an additional fixed gobo wheel with 10 replaceable
metal gobos giving lighting professionals an even wider range of graphical effects
possibilities. Also included with the Entour are a series of beam reduction
gobos for easy adjustment of beam size.
Color
Rich color shades are provided from a motorized color wheel housing 12 dichroic
color filters plus open with split position possibilities. All color filters
are replaceable, and with a wide variety of optional colors available, designers
can customize the color palette to fit their needs.
Modular design
The MAC 2000 inspired modular housing is not only good looking; it is designed
to make service and maintenance simple with fast access to modules and critical
components. The Entour comes in black, white or titanium finish.
Dimmer/Shutter
The Entour features an enhanced high-resolution dimming system similar to the
MAC 2000 that provides exceptionally smooth and even dimming. Strobe effects
are possible up to 20 Hz.
Prism and focus
A bi-directional, 3-facet prism is smooth and rotates at variable speeds, adding
unique effects to gobo projection. The prism can also be replaced giving lighting
professionals an added customizable feature. The unit is also equipped with
a remote focus for additional effect possibilities, as well as various preset
patterns for valuable programming timesavings.
Martin’s fastest moving head ever
The latest in pan and tilt motor technology produces both smooth and ultra-rapid
movement, making the new MAC 250 fixtures the fastest moving heads that Martin
has ever produced. Movement range is 540° of pan x 257° of tilt. If
knocked out of position, a high-speed, automatic reset function realigns the
fixture in seconds. The Entour includes two additional features: an easily accessible,
multi-position tilt lock eases handling when moved on a frequent basis, and
a convenient, low noise operation mode is included for noise sensitive studio
environments.
Communications
The MAC 250 Entour is equipped with 3 and 5 pin XLR IN/OUT connectors for data
and prepared for future new standards such as ACN or Ethernet based protocol.
Also on board is a new light sensitive yellow LED display for easy fixture programming,
and customized settings allow each user to cater the fixture to their liking.
The display provides easy to use maintenance menus and concise error messages.
A convenient, easily switchable power supply covers worldwide voltages and
frequencies.
