0x321 Network Layer

Returning to the receptionist and bureaucracy analogy, the network layer is like the worldwide postal service: an addressing and delivery method used to send things everywhere. The protocol used on this layer for Internet addressing and delivery is appropriately called Internet Protocol (IP). The majority of the Internet uses IP version 4, so unless otherwise stated, that's what IP refers to in this book.

Every system on the Internet has an IP address. This consists of an arrangement of four bytes in the form of xx.xx.xx.xx, which should be familiar to you. In this layer, both IP packets and Internet Control Message Protocol (ICMP) packets exist. IP packets are used for sending data, and ICMP packets are used for messaging and diagnostics. IP is less reliable than the post office, which means that there's no guarantee that an IP packet will actually reach its final destination. If there's a problem, an ICMP packet is sent back to notify the sender of the problem.

ICMP is also commonly used to test for connectivity. ICMP Echo Request and Echo Reply messages are used by a utility called ping. If one host wants to test whether it can route traffic to another host, it pings the remote host by sending an ICMP Echo Request. Upon receipt of the ICMP Echo Request, the remote host sends back an ICMP Echo Reply. These messages can be used to determine the connection latency between the two hosts. However, it is important to remember that ICMP and IP are both connectionless; all this protocol layer really cares about is trying its hardest to get the packet to its destination address.

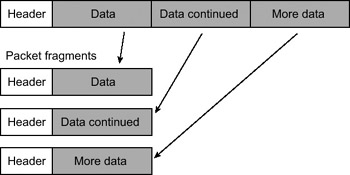

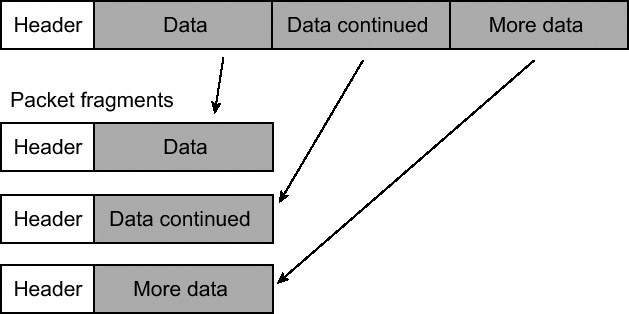

Sometimes a network link will have a limitation on packet size, disallowing the transfer of large packets. IP can deal with this situation by fragmenting packets, like this:

The packet is broken up into smaller packet fragments that can pass through the network link, IP headers are put on each fragment, and they're sent off. Each fragment has a different fragment offset value, which is stored in the header. When the destination receives these fragments, the offset values are used to reassemble the IP packet.

Provisions such as fragmentation aid in the delivery of IP packets, but this does nothing to maintain connections or ensure delivery. This is the job of the protocols on the transport layer.

0x322 Transport Layer

The transport layer can be thought of as the first line of receptionists, picking up the mail from the network layer. If a customer wants to return a defective piece of merchandise, they might have to send a message requesting an RMA (Return Material Authorization) number. Then the receptionist would follow the return protocol, ask for a receipt, and eventually issue an RMA number so the customer can mail the product in. The post office is only concerned with sending these messages (and packages) back and forth, not with what's in them.

The two major protocols in this layer are Transport Control Protocol (TCP) and User Datagram Protocol (UDP). TCP is the most commonly used protocol for services on the Internet: Telnet, HTTP (web traffic), SMTP (email traffic), and FTP (file transfers) all use TCP. One of the reasons for TCP's popularity is that it provides a transparent, yet reliable and bi-directional, connection between two IP addresses. A bi-directional connection in TCP is similar to using a telephone — after dialing a number, a connection is made through which both parties can communicate. Reliability simply means that TCP will ensure that all the data will reach its destination in the proper order. If the packets of a connection get jumbled up and arrive out of order, TCP will make sure they're put back in order before handing the data up to the next layer. If some packets in the middle of a connection are lost, the destination will hold on to the packets it has while the source retransmits the missing packets.

All of this functionality is made possible by a set of flags called TCP flags, and by tracking values called sequence numbers. The TCP flags are as follows:

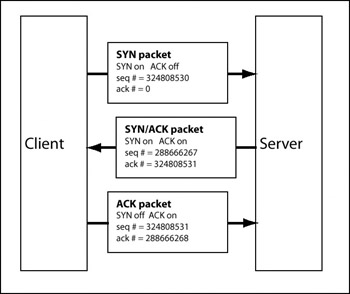

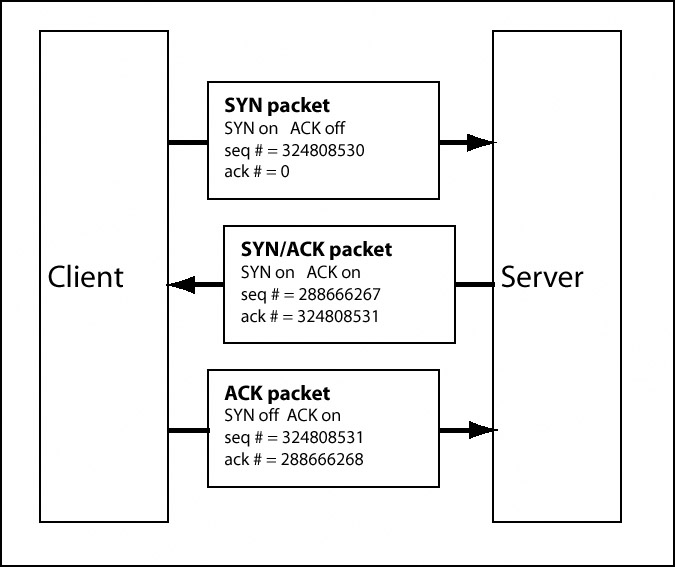

The SYN and ACK flags are used together to open connections in a three-step handshaking process. When a client wants to open a connection with a server, a packet with the SYN flag on, but the ACK flag off, is sent to the server. The server then responds with a packet that has both the SYN and ACK flags turned on. To complete the connection, the client sends back a packet with the SYN flag off but the ACK flag on. After that, every packet in the connection will have the ACK flag turned on and the SYN flag turned off. Only the first two packets of the connection have the SYN flag on, because those packets are used to synchronize sequence numbers.

Sequence numbers are used to ensure the aforementioned reliability. These sequence numbers allow TCP to put unordered packets back into order, to determine whether packets are missing, and to prevent packets from other connections getting mixed together.

When a connection is initiated, each side generates an initial sequence number. This number is communicated to the other side in the first two SYN packets of the connection handshake. Then, with each packet that is sent, the sequence number is incremented by the number of bytes found in the data portion of the packet. This sequence number is included in the TCP packet header. In addition, each TCP header also has an acknowledgment number, which is simply the other side's sequence number plus one.

TCP is great for applications where reliability and bi-directional communication are needed. However, the cost of this functionality is paid in communication overhead.

UDP has much less overhead and built-in functionality than TCP. This lack of functionality makes it behave much like the IP protocol: It is connectionless and unreliable. Instead of using built-in functionality to create connections and maintain reliability, UDP is an alternative that expects the application to deal with these issues. Sometimes connections aren't needed, and UDP is a much more lightweight way to deal with these situations.

0x323 Data-Link Layer

If the network layer is thought of as a worldwide postal system, and the physical layer is thought of as interoffice mail carts, the data-link layer is the system of interoffice mail. This layer provides a way to address and send messages to anyone else in the office, as well as a method to figure out who's in the office.

Ethernet exists on this layer, and the layer provides a standard addressing system for all Ethernet devices. These addresses are known as Media Access Control (MAC) addresses. Every Ethernet device is assigned a globally unique address consisting of six bytes, usually written in hexadecimal in the form xx:xx:xx:xx:xx:xx. These addresses are also sometimes referred to as hardware addresses, because the address is unique to each piece of hardware and is stored on the device in integrated circuit memory. MAC addresses can be thought of as Social Security numbers for hardware, because each piece of hardware is supposed to have a unique MAC address.

Ethernet headers contain a source address and a destination address, which are used to route Ethernet packets. Ethernet addressing also has a special broadcast address, consisting of all binary 1s (ff:ff:ff:ff:ff:ff). Any Ethernet packet sent to this address will be sent to all the connected devices.

The MAC address isn't meant to change, but an IP address may change regularly. IP operates on the layer above, so it isn't concerned with the hardware addresses, but a method is needed to correlate the two addressing schemes. This method is known as Address Resolution Protocol (ARP).

There are actually four different types of ARP messages, but the two important messages are ARP request messages and ARP reply messages. An ARP request is a message that is sent to the broadcast address that contains the sender's IP address and MAC address and basically says, "Hey, who has this IP? If it's you, please respond and tell me your MAC address." An ARP reply is the corresponding response that is sent to a specific MAC address (and IP address) and basically says, "This is my MAC address, and I have this IP address." Most implementations will temporarily cache the MAC/IP address pairs that are received from ARP replies, so that ARP requests and replies aren't needed for every single packet.

For example, if one system has the IP address 10.10.10.20 and MAC address 00:00:00:aa:aa:aa, and another system on the same network has the IP address 10.10.10.50 and MAC address 00:00:00:bb:bb:bb, neither system can communicate with the other until they know each other's MAC addresses.

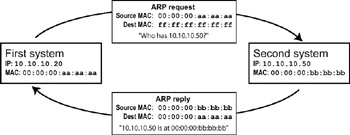

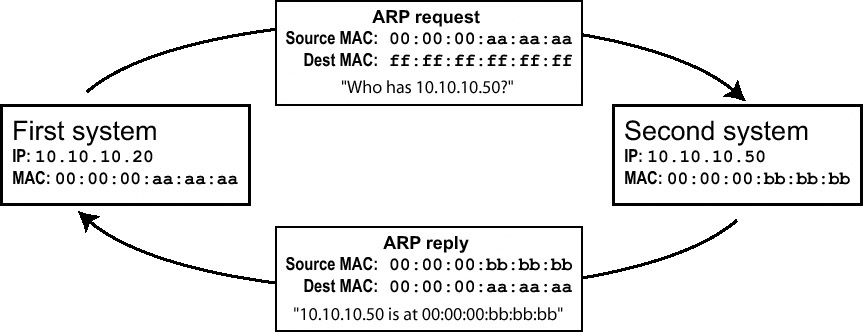

If the first system wants to establish a TCP connection over IP on the second device's IP address of 10.10.10.50, the first system will first check its ARP cache to see if an entry exists for 10.10.10.50. Because this is the first time these two systems are trying to communicate, there will be no entry, and an ARP request will be sent out to the broadcast address. This ARP request will essentially say, "If you are 10.10.10.50, please respond to me at 00:00:00:aa:aa:aa." Because this request goes out over the broadcast address, every system on the network sees the request, but only the system with the corresponding IP address is meant to respond. In this case, the second system responds with an ARP reply that is sent directly back to 00:00:00:aa:aa:aa saying, "I am 10.10.10.50 and I'm at 00:00:00:bb:bb:bb." The first system receives this reply, caches the IP and MAC address pair in its ARP cache, and uses the hardware address to communicate.
