Another form of network attack is a denial of service (DoS) attack. RST hijacking is actually a form of DoS attack. Instead of trying to steal information, a DoS attack simply prevents access to a service or resource. There are two general forms of DoS attacks: those that crash services and those that flood services.
Denial of service attacks that crash services are actually more similar to program exploits than network-based exploits. Often these attacks are dependent on a poor implementation by a specific vendor. A buffer-overflow exploit gone wrong will usually just crash the target program instead of changing the execution flow to the injected shellcode. If this program happens to be on a server, then no one else can access that service. Crashing DoS attacks like this are closely tied to a certain program and a certain version, but there have been a few crashing DoS attacks that affected multiple vendors due to similar network oversights. Even though these oversights are all patched in most modern operating systems, it's still useful to think about how these techniques might be applied to different situations.
Under the specification for ICMP, ICMP echo messages are only meant to have 216, or 65,536 bytes of data in the data part of the packet. The data portion of ICMP packets is commonly overlooked, because the important information is in the header. Several operating systems crashed if they were sent ICMP echo messages that exceeded the size specified. An ICMP echo message of this gargantuan size became affectionately known as The Ping of Death. It was a very simple hack in response to a vulnerability that existed because those vendors never considered this possibility. Nearly all modern systems are patched against this vulnerability now.
Another similar crashing DoS attack that came about for the same reason was called teardrop. Teardrop exploited another weakness in several vendors' implementations of IP fragmentation reassembly. Usually when a packet is fragmented, the offsets stored in the header will line up to reconstruct the original packet with no overlap. The teardrop attack sent packet fragments with overlapping offsets, which caused implementations that didn't check for this irregular condition to inevitably crash.
Flooding DoS attacks don't try to necessarily crash a service or resource, but instead try to overload it so it can't respond. Similar attacks can tie up resources like CPU cycles and system processes, but a flooding attack specifically tries to tie up a network resource.
The simplest form of flooding is just a ping flood. The goal is to use up the victim's bandwidth so that legitimate traffic can't get through. The attacker sends many significantly large ping packets to the victim, which eats away at the bandwidth of the victim's network connection.
There's nothing really clever about this attack, as it's mainly just a battle of bandwidth; an attacker with greater bandwidth than a victim can send more data than the victim can receive, and therefore deny other legitimate traffic from getting to the victim.

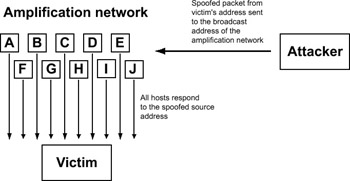

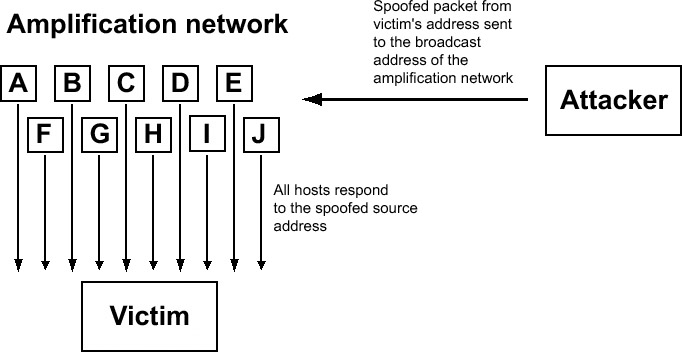

There are actually some clever ways to perform a ping flood, without having massive amounts of bandwidth. An amplification attack uses spoofing and broadcast addressing to amplify a single stream of packets by a hundredfold. First, a target amplification system must be found. This is a network that allows communication to the broadcast address and has a relatively high number of active hosts. Then the attacker sends large ICMP echo request packets to the broadcast address of the amplification network, with a spoofed source address of the victim's system. The amplifier will broadcast these packets to all the hosts on the amplification network, which will then send corresponding ICMP echo reply packets to the spoofed source address, which is the victim's machine.
This amplification of traffic allows the attacker to send a relatively small stream of ICMP echo request packets out, while the victim gets swamped with up to a couple hundred times as many ICMP echo reply packets. This attack can be done with both ICMP packets and UDP echo packets. These techniques are known as smurf and fraggle attacks, respectively.
A distributed DoS (DDoS) attack is a distributed version of a flooding DoS attack. Because bandwidth consumption is the goal of a flooding DoS attack, the more bandwidth the attacker is able to work with, the more damage they can do. In a DDoS attack, the attacker first compromises a number of other hosts and installs daemons on them. These daemons wait patiently until the attacker picks a victim and decides to attack. The attacker uses some sort of controlling program, and all of the daemons simultaneously attack the victim using some form of flooding DoS attack. Not only does the great number of distributed hosts multiply the effect of the flooding, it also makes tracing the attack that much more difficult.
Instead of exhausting bandwidth, a SYN flood tries to exhaust states in the TCP/IP stack. Because TCP maintains connections, it must track these connections and their state somewhere. The TCP/IP stack handles this, but the number of connections a single TCP stack can track is finite, and a SYN flood uses spoofing to take advantage of this limitation.
The attacker floods the victim's system with many SYN packets, using a spoofed nonexistent source address. Because a SYN packet is used to initiate a TCP connection, the victim's machine will send a SYN/ACK packet to the spoofed address in response and wait for the expected ACK response. Each of these waiting, half-open connections goes into a backlog queue that has limited space. Because the spoofed source addresses don't actually exist, the ACK responses needed to remove these entries from the queue and complete the connection never come. Instead, each half-open connection must time out, which takes a relatively long time.
As long as the attacker continues to flood the victim's system with spoofed SYN packets, the victim's backlog queue will remain full, making it nearly impossible for real SYN packets to get to the system and initiate valid TCP/IP connections.
|
|
