DXDK60Ⅱ/P60/ⅡF60Ⅱ/L60Ⅱ

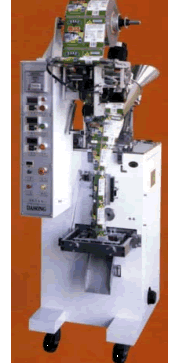

Pillow-like Bags Auto Packaging Machine



It has been developed latest according to international fashionable stype. The appearance of bea is very smart and packaging amterial is used efficiently. The machine adopts the structure of horizontal sealing and cutting as one and no damage bags appear. Model DXDK60Ⅱ is suitable for packaging grain; Model DXDP60Ⅱis suitable for packaging tablet; Model DXDL60Ⅱ is suitable for packaging liquid; Model DXDF60Ⅱ is suitable for packaging powder.

Main Technical Specifications:


Item

DXDK60Ⅱ

DXDP60Ⅱ

DXDF60Ⅱ

DXDL60Ⅱ

Packaging Speed (bag/min)

40-60

Range of Measurement (ml)

50-100

ф12*24(tablet)

10-150

10-50

Bag Size (mm)

Length50-150; Width 50-100

Source Voltage

3-phase and four-wire system 380V/50Hz

Power (Kw)

1.1

1.28

1.24

1.1

Weight (kg)

210

Dimension (mm)

670*790*1750(L*W*H)
