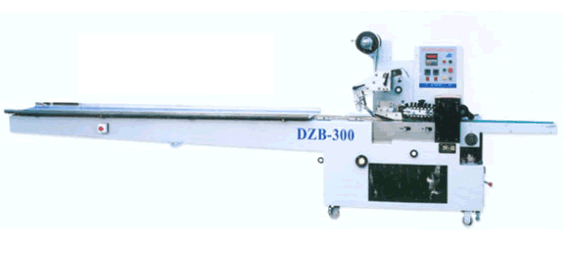

DZB-300 Multifunction Pillow Type Packing Machine

  Applicable Range:


The machine is an improved pillow type packing machine of full computer control, high precision and high speed. It is suitable for yolk style, biscuit, Popsicle, chocolate, paper towel, medicine things, commodities, etc. It has broad applicable range, advanced structure, strong stability.
We can supply corollary equipment as following
A. Auto baiting setting
B. Date Printer
C. Auto gas charging, spraying agent


  Main Technical Parameters:

  production Capacity:50-300bags/min
Packing Shape: Square, Rectangle, Circular and Ellipse etc,
Packing Spec.: Length 40-130mm Width 20-100mm Height 1-35mm
Length 80-260mm width 20-100mm Height 1-50mm
Max. Width of Membrane:300mm
Max. dia. of Membrane:350mm
Gross Power:3kw
Gross Weight: about 900kg
Overall Dimensions: Length 4700mm*Width850mm*Height1550mm

Note: We can adjust the specification conforming to the special needs of users.
