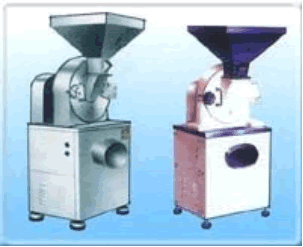

| By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. Designed according to GMP standard and wholly made of stainless steel, model 30B¢ö, model 40B and 60B crushing chamber is equipped with water-cooling jacket, with simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment present. |  |
|
Model |
20B |
30B¢ô¢õ¢ö |
40B |
60B |
|
Production Capacity |
60-150kg/h |
100-300kg/h |
160-800kg/h |
500-1500kg/h |
|
Spindle speed |
4500r/min |
3800r/min |
3400r/min |
2800/min |
|
Feeding size |
6mm |
10mm |
12mm |
15mm |
|
Crushing fineness |
60-150mesh |
60-120mesh |
60-120mesh |
60-120mesh |
|
Motor power |
4KW |
5.5KW |
11KW |
15KW |
|
Weight |
250kg |
320kg |
550kg |
680kg |
|
Overall Size(mm) |
550¡Á600¡Á1250 |
600¡Á700¡Á1450 |
800¡Á900¡Á1550 |
1000¡Á900¡Á1680 |
