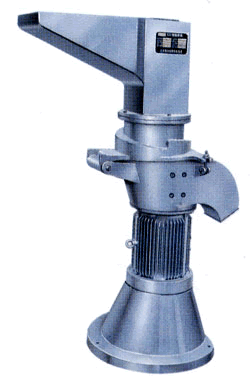

CSJ Model Rough Mill

  Main usage:

  This machine is applied by the industries of pharmaceutics, chemical, metallurgy, foodstuff, and architecture etc. It specially grinds the hard and solid granule materials including the breaking of plastics materials and cooper wires, as well as the pre-treatment coordinated machine for fine grinding process.


Specialty:

Accepting vertical grinding mechanism, this machine can process any material without being limited by the viscosity, hardness, or softness of the said material.

Working method:

Any raw material, being feed into the grind chamber through the upper feeder, striked and impacted by the knife-edges knife stand, cut and grinded simultaneously by the revolving and fixed knifes, automatically runs to the exist by the centrifugal force of revolving object.


  Main Technical Specifications:



Model

CSJ

Capacity

100-500

Size of input granules

¡Ü100

Size of output granules

0.5-20

Power

4

Speed of principal axis

940

Overall size (L*W*H)

1080*530*1460

Weight

380
