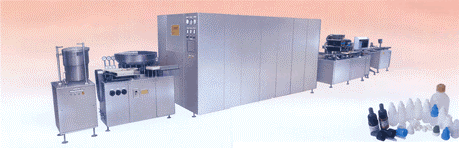

DSG2/80 Series Washing, Drying, Filling, And Sealing Production Line For Eye Drop Liquid
	Applications:
	This product line, consists of KAQ Type Rotary Bottle Washing Machine, GMS Type Tunnel Laminar Flow Sterilization Drier, DSG2/80 Type Liquid Filling and Revolving Capping Machine, DJ Type Light Examining Machine, KTN Type Non-dry Sticky Labeling Machine, extensively applied in varies kind and specification eye drop liquid production.
	Function characteristics:
	After digesting and absorbing the advanced technique of same kind products in abroad, the machine unit is a new generation product with reasonable structure, higher automation degree. With higher production efficiency, it runs reliable and gets higher precision in filling accuracy. It is adopt the mechanical and electronic integration technology, reaching the advanced level in domestic. It exactly follows the GMP rules in medicine machine and satisfies the GMP requirement for drug production.
	Main Technical Parameter
	Filing specification: 5-10ml Production capacity: 5-10ml 80-100bottles/min £ £ £ £ £ £ £ £ £ £  20-50ml 50-70bottles/min The machine with filling amount range from 30ml to 200ml can be ordered according to customer needs. Filling accuracy:¡Ü2%-3% Electric power: 18kw Water consumption: 500l/h Clean compressed air consumption: 300l/min Clean compressed air pressure:015-0.25Mpa Overall dimension:(L X HX W) 9500X1400X1900
	1. KAQ Type Bottle Washing Machine
	With special structure, held by machinery hand, bottle is sprinkled in dividedly. Higher clean degree of bottle and lower water construction. It is also suitable for plastic bottle cleaning.
	Main Technical Parameter
	Bottle size: 1,2,5,10,20ml ampoule Power supply: 380V, 50 Hz Power consumed: 0.65kw The pressure of pure water consumed: 0.7m3/h The quantity of indecting water consumed: 0.35m3/h The quantity of clean compressed air:0. 3-0.4Mpa The quantity of clean compressed air consumed: 40m3/h Weight: approx.600kg Overall dimension (LX HX W) 1660X1560X1300mm
	Production Capacity
	1- 2ml ampoule: 10000 bottles/h 2- 5ml-10ml: 6000bottles/h 3- 20ml: 3500bottles/h
	2. GMS Series Tunnel Dryer
	Adopting imported electricity elements control; operation parameter can be set, shown and printed. With adjustable running speed, adopting purified 100-classlaminar flows protecting while sterilizing and drying. Working temperature can be adjusted for plastic bottle.
	Main Technical Parameter
	sterilizing temperature: 350¡æ sterilizing time: £¾5min Net stripe speed: 50-250mm/min (infinitely variable speeds) Temperature of vial at the outlet of the tunnel:¡Üroom temperature +15¡æ Clean grade: 100-class Cool method: 100-class vertical laminar flow cool Fan: two TDF type low-noise fans Power supply: 380V 50Hz Electric heating tube: two holes, quartz tube, plated gold Single machine noise: ¡Ü70Db Overall dimension (LXHXW): £ £ GMS-500 4500x1450x1900mm £ £ GMS-700 6000X1650X1900mm £ £ GMS-900 8000X1850X1900mm Power consumed: £ £ GMS-500: 50kw £ £ GMS-700: 72kw £ £ GMS-900: 90kw
	Production Capacity
	(¦Õ22cillin bottle as example)bottle/h GMS-500 10000-20000 GMS-700 20000-30000 GMS-900 30000-40000
	NOTE: Besides above three sizes, we also can design, manufacture according to the requirements of users to meet the needs of the user¡¯s production. Can equip according to customers require of the bottle pusher.
	3. DSG2/80 Liquid filling and revolving capping machine
	Set the filling amount by microcomputer, filling is carried by peristalsis pump, inner stopper and outer cap capped by machinery hand, set torque for revolving the cap. It also has auto stop filling device while there is no bottle. The quality of whole machines stable. With higher filling precision, there is no filling drop leak. I t revolves the cap with higher accuracy without any loose.
	Main Technical Parameter
	Filling quantity: 2-50ml The heads of filling: 2 Tolerance of filling quantity: ¡Ü¡À1.5% The qualified ratio of rotating ¨Ccap:¡Ý99% Power supply: 220V 50Hz Power consumed: 1.3kw Required compressed air: £ £ £ 1- Quantity: 25-35l/min £ £ £ 2- Pressure: 0.4-0.6Mpa Weight: approx 300kg Overall dimension:(LXHXW) 1940X960X1480mm
	Production Capacity:
	70-100bottles/min
	4. DJ-100 Light examining machine
	Light examination will get better effect if the diaphaneity instrument is involved.
	Main Technical Parameter
	Size of suitable bottle: ¦Õ12-¦Õ30mm Capacity of production: 60-120bottles/min Power supply: 220V 50 Hz Power: 100w Weight: 40kg Overall dimension: (LXHXW) 1000X500X1250mm
	5. KTN-A Non-dry sticky labeling machine
	Automatically complete to stick label, batch number printing step and automatically show the quantity record. Adopting the heat print method to get clear handwriting. Print format is adjustable.
	Main Technical Parameter
	Bottle size: ¦Õ12-¦Õ100mm Label size: Maximum size of single label: 100x50mm £ £ £ Maximum outside diameter of label dish: ¦Õ350mm £ £ £ Center hole of label dish: ¦Õ75mm Qualified rate of labeling: ¡Ý99% Power supply: 220v 50Hz Power consumed: 0.3kw The pressure of compressed air equipped: 0.4-0.6Mpa The quantity of consumed compressed air equipped: 0.1m3/h Weight 100kg Overall dimension (LX H X W): £ £ £ KTN-A-1: 1835X740X1300mm £ £ £ KTN-A-2: 1460X1000X1050mm
	Production Capacity
	Bottleneck¦Õ12-¦Õ22mm: 120-150bottles/min Bottleneck¦Õ25-¦Õ35mm: 100bottles/min Bottleneck¦Õ35-¦Õ56mm: 80bottles/min Bottleneck¦Õ56-¦Õ100mm: 60bottles/min
	Technique Service
	We could train operation personnel and offer equipment data for GMP validation.
