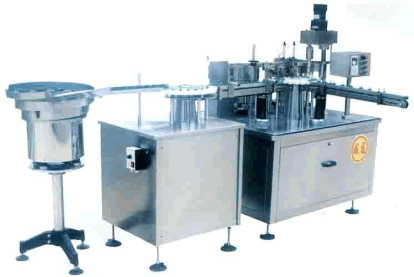

YG20 Eye Drop Filling and Screwing Machine

  Brief Introduction:

  The machine mainly applied to auto working of filling, putting inner stopper and screwing in the eye drop, red medicine liquid, alcohol and frozen etc small dosage. Three actions all perform by the cam wheel, action has not error. It can choose the peristaltic pump to fill, air cylinder acting parts, dust cover is available.

  Main Technical Specifications:

  1. Filling capacity: 2-30ml
2. Filling precision: ¨Q+-2%
3. Production capacity: 40-60bottles/min
4. Error: ¨Q98%
5. Electric source: 380V 50Hz
6. Total power: 1.2Kw
7. Weight: 650kg



  1.Single Head Round Bottle Filing and Screwing Machine



  2. Single Head Flat Bottle Filling and Screwing Machine

  3. Two Head Eye Drop Filling and Screwing Machine
