Principle of Work:

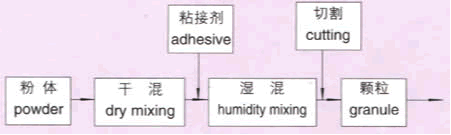

The powder raw material and adhesive in a cylinder are mixed fully at the bottom to become a humid soft material. The it is cut through high-speed crusher and become uniform granules.

Feature of Product:

The machine adapts horizontal cylinder structure. Its structure is reasonable.
Use air filled seal shaft to drive. When washing, it can be changed to water;
Use fluidization to Granulate and the granule is near ball. Its flow is good;
Compared the traditional process,25% of adhesive can be reduced and the drying time can be shorted;
The time of mixing in dry is 2 minutes and the time of granulating is 1-4 minutes .Compared with the traditional process,4-5 times of efficiency is raised;
In the same sealed container, dry mixing, humidity mixing and granulating can be finished. It is in conformity with the requirements of GMP;
The whole operation has strict safe and protective measures.

Main Technical Specifications:

Name	Unit	10	50	150	200	250	300	400	600
Capacity	L	10	50	150	200	250	300	400	600
Output	kg/batch	3	15	50	80	100	130	200	280
Admix speed	r.p.m	300/600	200/400	180/270	180/270	180/270	140/220	106/155	80/120
Admix speed	kw	1.5/2.2	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22	22/30
Incise speed	r.p.m	1500/ 3000	1500/ 3000	1500/ 3000	1500/ 3000	1500/ 3000	1500/ 3000	1500/ 3000	1500/ 3000
Incise powder	kw	0.85/1.1	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
Pressure air amount	m³/min	0.6	0.6	0.9	0.9	0.9	1.1	1.5	1.8

type	A	B	C × D	E	F
10	270	750	1000×650	745	1350
50	320	950	1250×800	970	1650
150	420	1000	1350×800	1050	1750
200	500	1100	1650×940	1450	2050
250	500	1160	1650×940	1400	2260
300	550	1200	1700×1000	1400	2310
400	670	1300	1860×1100	1550	2410
600	750	1500	2000×1230	1750	2610
