Soft Gelatin Capsule



Soft Gelatin Capsule Introduction:



Soft gelatin capsule has being more and more widely applied in various fields of drug, nutriceutical and cosmetic. The soft gelatin capsule is a sealed capsule usually filled with liquid and has a fortified and tough shell consists of gelatin and glycerol. Soft gelatin capsule is used to encapsulate liquid, suspension, paste or particle quantitatively in sealed capsules of various size and shape.
Different from the two-step manufacturing (shaping and filling) of hard gelatin capsule, the soft gelatin capsule is made on a rotating mould in a continuous one-step operation. Gelatin skin made of gelatin and glycerol passes through two die rolls facing each other and continuously rotating in reverse cycles and forms in shape in the mould cavity. The size and shape of the soft gelatin capsule are determined by the mould cavity. Material filling and sealing of gelatin skin is carried out in the same time so that the filling process ends right before the finish of sealing.

Filled capsule is put into tumble dryer for forming and drying, and then it is cleaned and dried finally. After visual inspection, the capsule is packed up and stored in the warehouse.
  Merits of Soft Gelatin Capsule:

    • The soft gelatin capsule has tidy and beautiful appearance. Compared to tablet pills, it features faster disintegration speed, higher bioavailability and convenient ingestion, storage and taking along.
    • The capsule can cover unpleasant odor of the medicine.
    • The capsule can be made into instant-effective, slow-releasing, enteric coated or gastro coated soft gelatin capsule.
    • Both medicine with dosage form of higher oil concentration that cannot be easily made into tablets or pills and small dosage principle agent that is not water-soluble and hard to be ingested in the digestive.
    • Light-sensitive and usstable drugs can be filled into opaque lightproof opageopa capsule to improve the stability and prevent the drug from been affected by moisture, oxygen and light in the air.
    • Completely sealed package ensures the intactness of its content and provides counter fake function.
    • The soft gelatin capsule can be used to make neutriceuticals, cosmetics and paintball for simulated shooting.

  Disadvantages:


    • Water solution of the drug or diluted alcohol can dissolve gelatin, therefore they cannot be packed in soft gelatin capsules.
    • The capsule disintegrates easily under high temperature and heat.

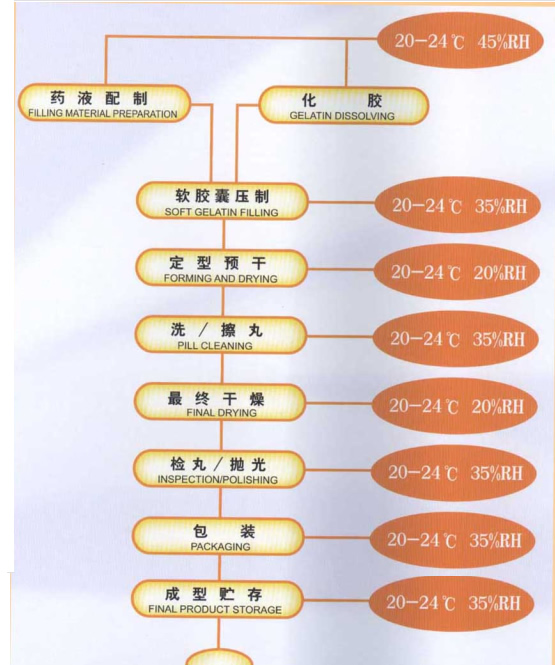

  Workflow of Soft Gelatin Capsule:



Rotary Die Encapsulating Machine for Soft Gelatin Capsule:



  Die Rollers:
