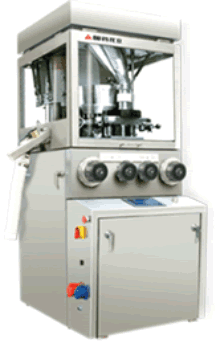

GZPL-370 Double Sided High-speed Tablet Press


Advanced, rational design is the basis of excellent quality products. Integrated with many years¡¯ experience for manufacturing High-speed Tablet Press and modern advanced science & technology. GZPL-620 Double Sided High-speed Tablet Press provide now design principle, which make standardization, mouldization and series design come t rue.
GZPL-620, Double Sided High-speed tablet press. It is particularly precision and automation; special for high output and large batch production.

Main Characteristic:

  • Totally meet the GMP standard.
  • The parts touching powder made from stainless steel
  • .The entire tablet housing is paint free.
  • The punch bores protected by special oil-tight and dust-tight seals.
  • Visibility, isolated windows.
  • Overall structure made form stainless steel.
  • Reliable closing system and dust-proof system.
  • Removal design to friendly maintenance.
  • 360¡æ opening structure, observing and cleaning easily.



  Main Technical Specifications:



Model

GZPLS26

GZPLS32

GZPLS40

Number of Station (set)

26

32

40

Max Tablet Diameter (mm)

25

16

13

Output (tablet/h)

172,000

211,000

264,000

Max Filling Depth (mm)

20

18

18

Max Compression Force (kN)

100

80

80

Max Pre Compression Force (kN)

14

14

14

Power (kW)

7.5

7.5

7.5

Overall Dimension (mm)

1130x1010x1920

Weight (kg)

               1,700
