Tablet pressing room

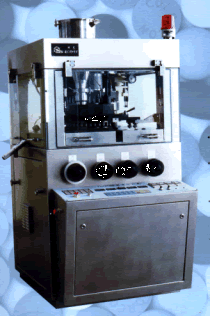

PG Series Tablet Press is a high capacity tablet press, which is a rotary continuous tablet-pressing machine controlled by computer and can automatically adjust the fill depth and reject unqualified tablet. The control system consists of industry control computer, small modular programmable controller (PLC) and many monitoring and measuring sensors. This system has the functions of high speed data acquisition, data processing, controlling & monitoring, display, printing and recording, fault indicating and automatic protection and shut-down.
This machine can press granulated material into round, carved and specially shaped tablets, which is high efficiency and precise pressing equipment for pharmaceutical, food and chemical industries.

Main Technical Specifications:

Model Parameter	PG36 (A, B,C)	PG30 (A, B,C)	PG24 (A, B,C)
Number of tool station	36	30	24
Max. tablet diameter mm	13	18	25
Max. tablet thickness mm	9	9	9
Max. fill depth mm	18	18	18
Turret speed range 1/min	30~100	30~100	25~70
Max. Output of tablets 1/h	216000	180000	100800
Max. Compression force KN	20	20	20
Max. pressing force KN	80	80	80
Diameter of die mm	24	30.16	38.1
Diameter of punch shaft mm	19	19	25.35
Length of top/bottom punch mm	133.6	133.6	133.6
Power kw	10	10	10
Net weight kg	1900	1900	1900
Machine height with hopper mm	1940	1940	1940
Floor spare mm	1050X1280	1050X1280	1050X1280

Based on the experiences of development, production and service of tablet press in the past years, PG-B Series High Tablet Press has been developed, which has advantages of excellent performances, high automation and easy operation in accordance with GMP.
The main features are as follows:

1. High hardness surface treatment for intermediate turret makes it suitable to press Chinese tablet medicine.
2. Reasonable design and precise manufacture ensure the quality and life of the product.
3. High productivity.
4. Automatically compensation is used to control tablet weight to guarantee harmony between tablet;
5. Multi-monitoring method is taken to protect operator and machine, as well as to ensure tablet quality.
6. 12.1-touch screen is used.
7. User-friendly man-machine interface enables user to easily operate.
8. The pressure of each punch is monitored and displayed at high speed; therefore every single waste tablet rejecting is realized.

PG-C Series High Speed Tablet Press is the latest development to meet our customer’s demands of high speed and lower price. Its main feature is: cost effective and stable. It uses Mitsubishi controller (PLC) as its main control element to realize single main pressure measurement; automatic compensation of tablet weight; main hydraulic pressure measurement and main machine monitoring, etc.. It uses 10.2 inch Mitsubishi touch screen as man-machine interface to make operation easy and automatic display of failure causes and handling methods. This machine is able to press round and irregular shape tablets as well as tablets carved with words.
