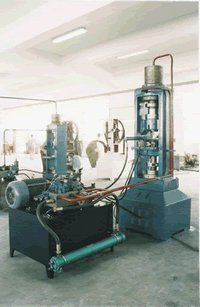

SK45, SK100 Hydraulic Pressure Tablet Press


Performance Characteristics:

  The hydraulic Yaji electrical use "PLC" programming control, all moves can be time regulation. 209,000 full use of hydraulic components manufactured imports, double, to suppress, product processing powder high, repression density is good, efficient production, the key position to control the use of mechanical and electrical double, all moves can be produced through the Plc to the best state.


  Main Technical Specifications:


Type

            SK45

             SK100

Work pressure

45T

100T

Up-Max  itinerary

100

150

Loading height

80

100

Down-Max  itinerary

120

150

Production number/m

12

9

Product errors(mm)

      ¡À0.02

      ¡À0.02

Motor

  7.5KW

     11KW

Overall size(LxWxH)

  1900x1600x2100

  2300x1700x2400

Weight

  2050KG

    2880KG
