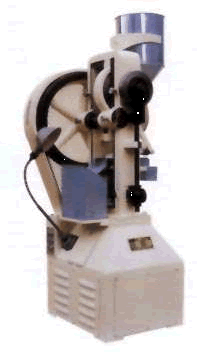

THP Flower Type Tablet Press


Application:

his machine is a medium continuous automatic tablet press which is one of the essential equipment for pressing granular raw materials into tablets or medicines taken with water in pharmaceutical, chemical, food, electronic industries. It can be used to press medicinal tablets, coffee pills, powder metallurgical parts electronics components, various tablets of pesticide and fertilizer etc. In small-batch production, laboratory and hospital. The machine can press special-shaped circular tablets of different kinds, and can also process the tablets of pesticide both sides are impressed trademarks, letters and simple patterns.

Main Technical Specifications:

Model

THP

THP-2

Max. Pressure                 KN

40

100

Max. Dia of Tablet              mm

30

50

Max. Depth of Fill              mm

25

45

Max. Dia of Circular Tablet      mm

22

35

Inner of Circular Tablet         mm

5.10

6~14

Depth of Fill Circular Tablet     mm

25

45

Production Capacity           PC/h

2070

2760

Motor

1.1kw

5.5kw

Machine Size                 mm

650*565*1610

666*860*1824
