Applications:

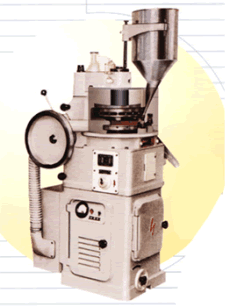

This machine is suitable for pressing round tables from various kinds of granular materials, especially for small-scale batch production. The turret carries 19(17) sets of punches and dies, so 19(17) tablets will be pressed for each revolution of the turret.
During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder during operation. so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.

Main Technical Specifications:

Dies	19sets	17sets
Max. Pressure	40KN	40KN
Max. Dia of Tablet	12mm	16mm
Max. Depth of Fill	15mm	15mm
Max. Thickness of Tablet	6mm	6mm
Turret Speed	20-40 r/min
Production Capacity	22800-45600pc/h	20400-40800pc/h
Motor	2.2kw 960r/min 380/50 V/Hz
Overall Size	880×750×1600mm
Net Weight	560kg
