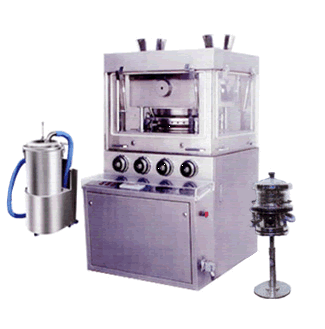

| ZP35B has pre-pressure equipment, the pre-pressure
is 5 ton. Produce all kinds of round tablets and irregular tablets. The outside part of the machine is fully-enclosed, the material of the cover and the inside face is stainless steel. The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the G.M.P requirement. It has transparent windows so that press condition can be observed clearly and the windows can be opened Cleaning and maintenance is easier. The lay-out of all the controllers and the operate parts is reasonable. The speed adjustment of the driver is controlled by the frequency conversion device. All the drive devices are located inside the machine so keep the machine clean. The hydraulic system can assure the stable of the system. A overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs, the machine stops automatically. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running. The punches and dies are also applicable to Mode ZP 19 ZP33. |
 |
| Dies |
35 sets |
| Max. Pressure |
80KN |
| Max. Dia of Tablet |
13mm |
| Max. Depth of Fill |
17mm |
| Max. Thickness of Tablet |
6mm |
| Max.Production Capacity |
150000pc/h |
| Motor 3kw 960r/min |
380/50 V/Hz |
| Overall Size |
1180กม1050กม1700mm |
| Net Weight |
2300kg |
