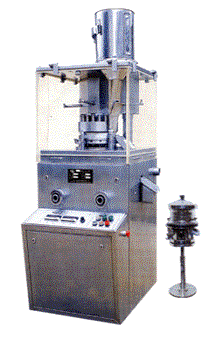

| The outside part of the machine is fully-enclosed, and it is made
of stainless steel, meeting the G.M.P requirement. It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier. The machine can press not only round tablets but also different geometrical shape tablets, double-layered and annular tablets, the tablets may have the impressed letters on both sides. All the controller and devices are located in one side of the machine, so that it can be easier to operate. A overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, prevent cross pollution. |
 |
| Dies |
17sets |
| Max. Pressure |
60KN |
| Max. Dia of Tablet |
20mm |
| Max. Depth of Fill |
15mm |
| Max. Thickness of Tablet |
6mm |
| Turret Speed |
37 r/min |
| Production Capacity |
4000pc/h |
| Motor |
2.2kw 940r/min 380/50 V/Hz |
| Overall Size |
900กม840กม1640mm |
| Net Weight |
1000kg |
