The covered tablet is a novel
form of tablet emerging in the world in recent years. Model ZPW20 Rotary
Covered Tablet Press is an electron-technically integrated product developed
by this company on the basis of absorption and digestion of the international
advanced technologies. It is also the first covered tablet press produced
on our country. Filling a domestic blank in this area. |
|
| |
|
|
| |
| |

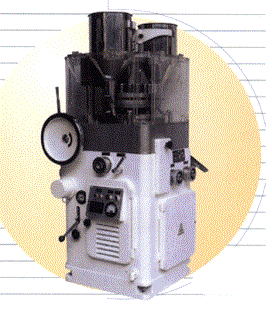

Model ZPW20 Rotary Tablet
Press a fully enclosed structure with the operation compartment
isolated from the outside. Ensuring the cleanness in the tablet
compressing area without creation of cross cont-amination with
the outside. The compressing compartment is wholly made of stainless
steel, which is in compliance with the GMP requirement on the
production of pharmaceuticals.
The machine adopted the adjustment of speed by means of frequency
inversion which is easy in operation and wide in the scope of
adjustment of speed. Disintegrated structure is adopted for
the turret. With the top of the table directly in contact with
the pharmaceutical materials. With the top of the table directly
in contact with the pharmaceutical materials made of stainless
steel and hardened by special technological process. Resulting
in the remarkable improvement in fatness and resistance to wearing.
The lubrication system of this machine can ensure the oil supply
to every lubricating point, reducing the wearing of the worm-gear
box and the tracks and extending the working life of the worm-gear
box and the tracks and extending the working life of the machine.
The electrical part adopts programmable control, with multi
automatic control functions such as stopping of the machine
on overload, insufficiency in the core material hooper etc.
it has a double detection mechanism by photo-electric switch
and pressure sensor, to ensure the automatic rejecting of any
tablet without a core.
The machine can be as a normal tablet press or for the production
of double layer tablets after a slight alternation. When used
to produce the covered tablets attention should be drawn to
the hardness and the precision of the dimension of the core
tablet.
Model ZPW20 Rotary Covered Tablet Press is also applicable in
other industries such as foodstuff and chemical. In addition
to the pharmaceutical industry to meet the need for the compression
of granular material that are not to be mixed or for the protection
from oxidation control of light avoidance or delay of release
of medicine. |
|
 |
|
|
| |
|
| |
|
|
| |
|
|
| |
|
|
