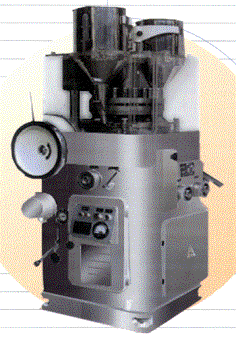

| This machine is designed for
pressing tablets form various kinds of granular materials. As its
feature, the machine can press not only round tablets but also different
geometrical shape tablets. Double-layered and annular tablets. The
tablets may have the impressed letters on both sides. The turret carries
21 sets of movable-punches and dies. So 21 tablets will be pressed
for easy revolution of the turret. During operation, the depth of
the filling material and the thickness of the tablets can be adjusted.
The pressure for tablet pressing is set by the hydraulic drive system
.A pressure gauge is attached to the system to show the pressure value.
A overload protection unit is included the system to avoid the damage
of the punches and apparatus. When overload occurs. The machine stoops
automatically. New type ZPW21B is designed to meet GMP standard. An improved type of ZPW21. Its pressing area is sealed with four polymethyl methacrylate doors to be isolated with outside environment. The parts contact the material are made of stainless steel or their surface is specially antisepticised to avoid pollution. |
 |
| Dies |
21sets |
| Max. Pressure |
80KN |
| Max. Dia of Tablet |
20mm |
| Max. Depth of Fill |
18mm |
| Max. Thickness of Tablet |
9mm |
| Turret Speed |
12-36 r/min |
| Production Capacity |
15000-45000pc/h |
| Motor |
3kw 1440r/min
380/50 V/Hz |
| Overall Size |
900กม840กม1640mm |
| Net Weight |
1200kg |
