Characteristics:

It is the necessary machine for Chinese Medicine Drugstores instead of traditional grinding tool. It is suitable for lab, foodstuff industry, chemical and feedstuff etc industry. The grinding effect is good, high speed, simple operation, the machine is durable.

Features:

1. It is small and exquisite, so it can be put on the table to use.

2. It has the low noise and needn't the assistant equipment, so it is very suitable for the drugstores to process on the spot.

3. The fineness of medicinal materials girding can be over 100 mesh for the super-high speed motor. And the machine can grind the Sandi, pearl, tulip, and hippocampus, reptile phrynsoma and large abdominal rib etc.

4. It take only 5 minutes to quickly grind 300g Chinese medicines, which are hardest to grind (The fineness can reach 80).

5. The blade is made of the stainless steel, so the sanitation accords with the standard of Chinese medicine.

6. The wastage of medicinal materials is little and it is easy to wash the machine. The change of color and taste will not because for grinding the different the materials.

7. The operation is easy. it isn't necessary to specially train the operators. It is all right that they can press the switch.

8. It is durable and the materials wastage is little. The bearing of motor is the foreign famous product. The blade is the only consumed material. It is made of the special steel and is similar to the blade of high-grade shaver.

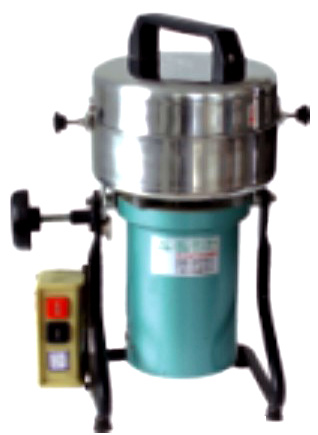

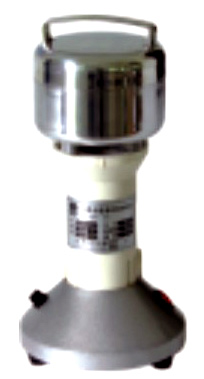

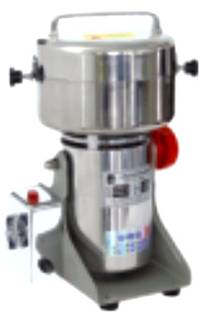

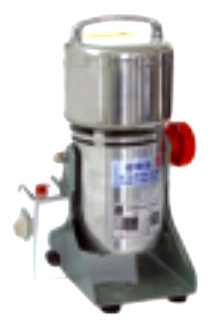

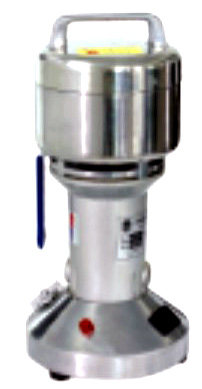

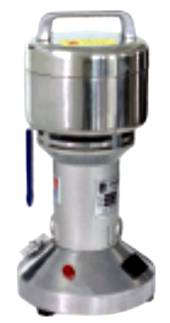

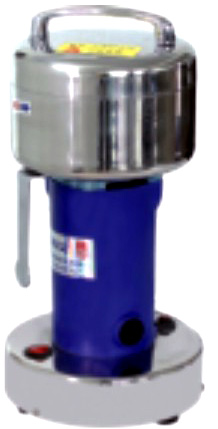

　　　　YF111　　　　　　　YF102　　　　　　　　YF112　　　　　　　　　YF103

　　　　YF113　　　　　　　　YF105　　　　　　　　　　　　YF114　　　　　　　　　YF115

　　　　　YF116　　　　　　　　　　YF118　　　　　　　　　　　　　　　YF150

Main Technical Specifications of YF Series Portable High Speed Chinese Medicine Pulverizer

Model	Capacity	Electric Source	Rotary speed of motor	Fineness	weight	Overall size
YF111	100g	220V 50ZH 0.35kw	25000r/min	30-300mesh	2.7kg	150x150x 280mm
YF102	150g	220V 50ZH 0.80kw	25000r/min	30-300mesh	3.8kg	160x160x 330mm
YF112	150g	220V 50ZH 0.80kw	25000r/min	30-300mesh	3.9kg	160x160x 330mm
YF103	200g	220V 50ZH 0.80kw	25000r/min	30-300mesh	4kg	160x160x 330mm
YF113	200g	220V 50ZH 0.90kw	25000r/min	30-300mesh	4.5kg	160x160x 330mm
YF105	250g	220V 50ZH 0.90kw	25000r/min	30-300mesh	4.2kg	170x170x 350mm

Main Technical Specifications of YF Series Oscillating Speed-changing Chinese Medicine Pulverizer

Model	Capacity	Electric Source	Rotary speed of motor	Fineness	weight	Overall size
YF114	200g	220V 50ZH 0.90kw	25000r/min	30-300mesh	6kg	190x210x 330mm
YF115	250g	220V 50ZH 1.00kw	25000r/min	30-300mesh	6.5kg	190x210x 330mm
YF116	300g	220V 50ZH 1.10kw	25000r/min	30-300mesh	8kg	190x210x 330mm
YF118	400g	220V 50ZH 1.20kw	25000r/min	30-300mesh	9kg	190x210x 330mm
YF150	500g	220V 50ZH 1.30kw	25000r/min	30-300mesh	10.5kg	190x210x 330mm

The Flowing Type Chinese Medicine Pulverizer is made of the stainless steel and aluminum alloy. It has the features of small bulk, light weight, high efficacy, fine operating continuity, simple operation, saving energy sources and safely using. It is the best grinding equipment for preparation, capsules and pills is suitable for powder grinding in hospitals, pharmaceutical factories, Chinese Medicine Processing Factories and other industries.

Model	Electric Source	Rotary speed of motor	Fineness	weight	Overall size
YF3-1	220V 50ZH 1.50kw	2840r/min	60-150mesh	25kg	550x170x 530mm
