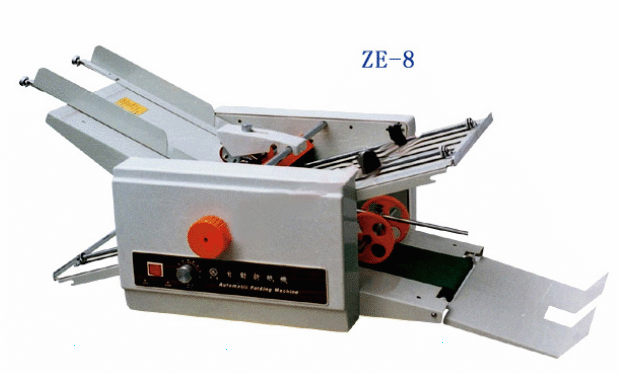

ZE-8 Automatic Paper Folder

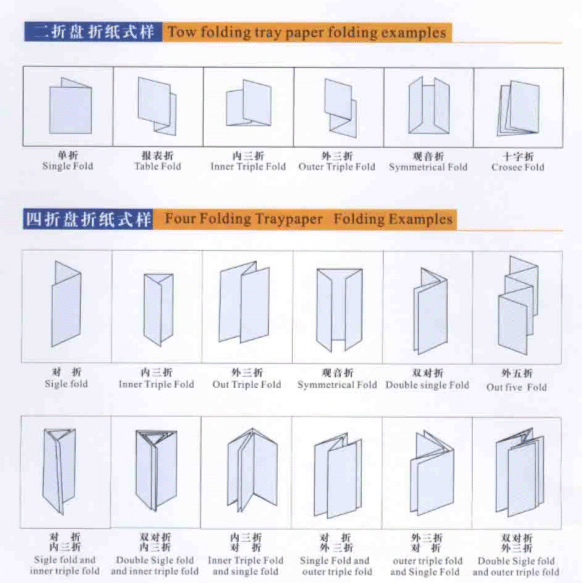

ZE Series automatic folding machine is featured with a novel design and very precise. It is suitable for folding paper in different size and thickness, six styles on showing legend can be folded. This machine deflected by operating easy, feeding smooth, stepless speed adjusting and efficiency. It can be widely used in fast printing center, producing enterprise, government organizations and league, etc
Main Technical Specifications:

Model

ZE-8

ZE-9

ZE-8B/4

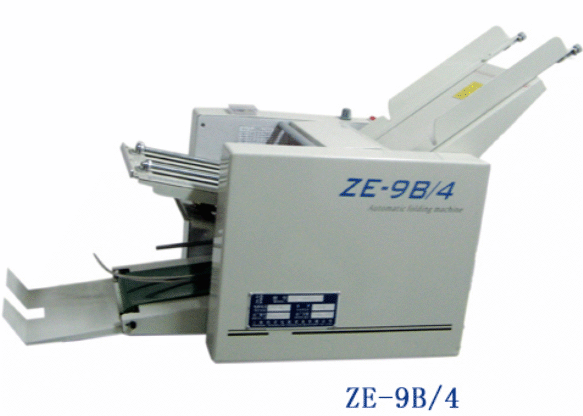

ZE-9B/4

Folding tray number

2

4

Voltage

AC 220V/50Hz 110V/60Hz

Power

50W

Max paper size

310*450(mm)

210*297(mm)

310*450(mm)

210*297(mm)

Min paper size

50*80(mm)

Max paper thickness

125g

Min paper thickness

35g

Max. speed

60m /min

Net weight

38kg

28kg

46kg

38kg

Size(L*W*H)

1030*580*460(mm)

900*410*430(mm)

1060*580*575(mm)

940*425*575(mm)
