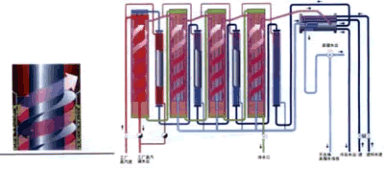

| The distilled water machines of our factory are multi-effect
distilled water machines with vapor-heating method. Through scientific
calculation, the quantity of heat is utilized many times circularly,
so they have high thermal efficiency. Compared with old type, single-effect
distilled water equipment, the multi-effect distilled water machines
can save more than two thirds of energy. They are presently the pioneer
and the best energy saving distilled water equipment in China. The
distilled water produced from there machines is of stable quality,
high purity and in conformity with the Chinese pharmacopoeia. It can

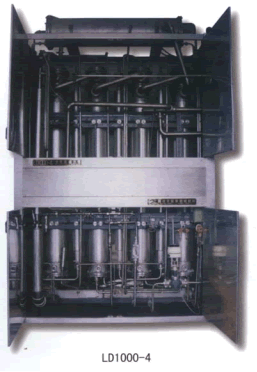

be used as injection water. The multi-effect distilled water machines have following models according to their capacity. LD200-3, LD500-4, LD1000-4, LD2000-5, LD3000-6 and so on. |
 |
 |
The distilled water produced from our distilled water machines is
widely used. In addition to preparing injections and infusions in
pharmaceutical industry, it can also be used to clean and sterilize
sterile instruments, prepare raw materials and standard samples used
in chemical laboratories, clean electronic components and culture
improved varieties in agricultural production, etc. The quality of the distilled water from theres machines is guaranteed in conformity with the requirements for Chinese Pharmacopoeia. On the promise that the electrical conductivity of feeding water is not more than 5μ s/cm, that of distilled water is less than 1μ s/m, Technical data of varied distilled water machines of our factory are as follows. |
| Vapor
Pressure (Mpa) |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
|
Capacity
(kg/h) |
510 |
665 |
765 |
850 |
925 |
1000 |
|
Vapor
Consumption (kg/h) |
160 |
208 |
247 |
293 |
330 |
370 |
|
Consumption of Feeding Water (kg/h 15℃) |
585 |
765 |
880 |
980 |
1065 |
1150 |
|
Consumption
of Cooling water |
425 |
535 |
646 |
818 |
937 |
1081 |
|
Overall
Dimensions and Weight |
L*W*H |
Weight |
||||
|
Dimension
of Chief Motor (mm) |
1495*900*3280 |
950 |
||||
|
Dimension
of Feeding Water Reservoir (mm) |
950*640*805 |
91 |
||||
|
Dimension
of Cooling Water Reservoir (mm) |
950*640*805 |
96 |
||||
| Vapor
Pressure (Mpa) |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
|
Capacity
(kg/h) |
200 |
255 |
305 |
355 |
410 |
440 |
|
Vapor
Consumption (kg/h) |
85 |
110 |
135 |
160 |
185 |
205 |
|
Consumption
of Feeding Water (kg/h 15℃) |
225 |
285 |
340 |
400 |
455 |
490 |
|
Consumption
of Cooling water(kg/h 15℃) |
260 |
340 |
415 |
195 |
580 |
630 |
|
Overall
Dimensions and Weight |
(L*W*H) mm |
Weight (kg) |
||||
|
Dimension
of Chief Motor (mm) |
1300*900*2480 |
500 |
||||
|
Dimension
of Feeding Water Reservoir (mm) |
950*640*805 |
91 |
||||
|
Dimension of Cooling Water Reservoir (mm) |
950*640*805 |
86 |
||||
| Vapor
Pressure (Mpa) |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
|
Capacity
(kg/h) |
1000 |
1270 |
1530 |
1785 |
2040 |
2195 |
|
Vapor
Consumption (kg/h) |
325 |
420 |
510 |
605 |
695 |
755 |
|
Consumption
of Feeding Water (kg/h 15℃) |
1120 |
1425 |
1710 |
1995 |
2285 |
2460 |
|
Consumption
of Cooling water(kg/h 15℃) |
645 |
850 |
1050 |
1255 |
1465 |
1570 |
|
Overall
Dimensions and Weight |
L*W*H |
Weight |
||||
|
Dimension
of Chief Motor (mm) |
2260*1060*4105 |
2060 |
||||
|
Dimension
of Feeding Water Reservoir (mm) |
1150*720*1130 |
100 |
||||
|
Dimension
of Cooling Water Reservoir (mm) |
1150*720*1130 |
90 |
||||
| Vapor
Pressure (Mpa) |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
|
Capacity
(kg/h) |
2000 |
2540 |
3060 |
3560 |
4040 |
4540 |
|
Vapor
Consumption (kg/h) |
510 |
659 |
805 |
949 |
1090 |
1238 |
|
Consumption
of Feeding Water (kg/h 15℃) |
2210 |
2870 |
3381 |
3934 |
4464 |
5017 |
|
Consumption
of Cooling water(kg/h 15℃) |
687 |
918 |
1145 |
1369 |
1588 |
1817 |
|
Overall
Dimensions and Weight |
(L*W*H) mm |
Weight (kg) |
||||
|
Dimension
of Chief Motor (mm) |
3545*1200*4360 |
4500 |
||||
|
Dimension
of Feeding Water Reservoir (mm) |
950*640*1030 |
150 |
||||
|
Dimension of Cooling Water Reservoir (mm) |
950*640*888 |
100 |
||||
| Vapor
Pressure (Mpa) |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
|
Capacity
(kg/h) |
3000 |
3800 |
4600 |
5340 |
6000 |
6800 |
|
Vapor
Consumption (kg/h) |
685 |
810 |
980 |
1200 |
1370 |
1560 |
|
Consumption
of Feeding Water (kg/h 15℃) |
3315 |
4210 |
5050 |
5900 |
6690 |
7520 |
|
Consumption
of Cooling water(kg/h 15℃) |
940 |
1300 |
1680 |
1980 |
2300 |
2700 |
|
Overall
Dimensions and Weight |
(L*W*H) mm |
Weight (kg) |
||||
|
Dimension
of Chief Motor (mm) |
4749*1250*4735 |
5700 |
||||
|
Dimension
of Feeding Water Reservoir (mm) |
1050*785*900 |
120 |
||||
|
Dimension of Cooling Water Reservoir (mm) |
1050*785*900 |
120 |
||||
