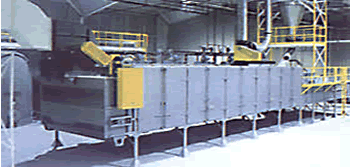

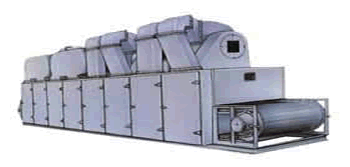

| This machine is flowing
and continuous type drying equipment firstly made by our factory.
The machine is used for drying the piece, tape and particle state
materials with good ventilation. The machine is suitable for the materials,
such as de-watering vegetable, herbal medicine of traditional Chinese
medicine and others, for which the water content rate is high and
the high temperature is not allowed. The machine owns the advantages,
that its drying speed is fast, the evaporation strength is high and
the product quality is good. The de-watering filtering cake state
paste material, after the particle making or bar making, can be dried
also. |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
| |

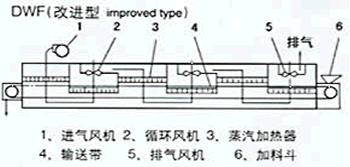

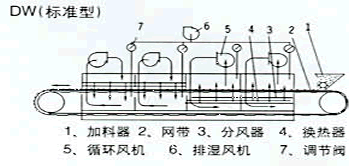

The
materials are uniformly put on the mesh-belt by the material charger.
The mesh-belt uses generally 12-60 mesh stainless steel wire net and
it is drawn and moved inside the direr by a transmission device. The
drier is composed of several units, the hot air is circulated separately.
Some exhausted gas is discharged with a special moisture elimination
blower. The waste gas is controlled through an adjustment valve. The
hot air passes through the mesh-belt covered with the material from
the top to the bottom or from the bottom to the top and this will
complete the heat and mass transfer process.
This process will bring will fall into the material collector continuously.
The top and low circulation units can be freely equipped according
to the users' demand. The unit number can be selected according to
be demand.
|
 |
|
|
| |
|
|
| |
|
| |
De-watering vegetable, particle feed, gourmet powder,
shredded coconut stuffing, organic color, compound rubber, acryl fibre,
medicine product, medicine material, small wooden product. plastic product,
aging and solidification for the electronic component and device. |
|
| |
|
|
| |
|
| |
| type |
W-1.28 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
| unit number |
4 |
5 |
4 |
5 |
4 |
5 |
| belt width m |
1.2 |
1.2 |
1.6 |
1.6 |
2 |
2 |
| drying section length m |
8 |
10 |
8 |
10 |
8 |
10 |
| thickness of the material to be covered mm |
10-80 |
| temperature ¡æ |
60-130 |
| steam pressure Mpa |
0.2-0.8 |
| steam consumption Kg/h |
120-130 |
150-375 |
150-375 |
170-470 |
180-500 |
225-600 |
| drying time h |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.2-1.5 |
| drying strength Kg H2O/h |
60-160 |
80-220 |
75-220 |
95-250 |
100-260 |
120-300 |
| total power of the blower Kw |
9.9 |
12.1 |
9.9 |
12.1 |
18.2 |
22.2 |
| total power of the equipment |
11.4 |
13.6 |
11.4 |
13.6 |
19.7 |
23.7 |
|
|
| |
|
|
| |
|
| |
|
|
| |
| |

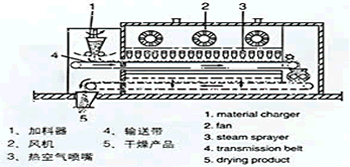

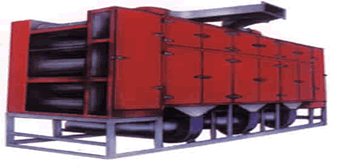

For DWP type spray air mesh-belt drying machine, the
hot air flows, through narrow seams or holes, downward or upward to the
materials on the transmission belt. Because the spray air speed is up to
more than 15m/s,the heat transmitting film is very thin, the heat transmitting
co-deficiency is big and the drying speed is fast. When the machine is used
for the air tight grains, the air flows will pass through the inside of
the materials. The heat source can be steam, electric, thermal furnaces
and combustion oil air and etc. |
|
| |
|
|
| |
|
| |
| DWP type
spray air mesh-belt drying machine is mainly used for drying the fibre
plate, plaster plate, pulp film, coated cloth and etc. The machine
is also suitable for drying the sheet state material and some special
materials. |
 |
|
|
| |
|
|
| |
|
| |
|
|
| |
| Type |
DW-1.2-8 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
| Unit number |
4 |
5 |
4 |
5 |
4 |
5 |
| Drying section length m |
8 |
10 |
8 |
10 |
8 |
10 |
| Thickness of the material to be falted mm |
10-80 |
| Temperature ¡æ |
60-130 |
| steam pressure Mpa |
0.2-0.8 |
| steam consumption capacity Kg/h |
120-300 |
150-375 |
150-380 |
170-470 |
180-500 |
230-600 |
| Drying strength Kg H2O/h |
80-170 |
90-220 |
80-220 |
90-250 |
180-230 |
120-300 |
|
|
| |
|
|
| |
|
|
