SZG Series double-taper Rotary Vacuum Dryer

  Introduce of Product:

  SZG Series Double Taper Vacuum Drier is a new generation drying device developed by our factory on the basis of combining the technology of same products. It has two connecting ways, i.e. pulley or chain. Therefore it is staffs realize good concentricity. Heat medium and vacuum system all adapt reliable machinery seal or rotating joint made from USA. On the basis, we also developed SZG-A. It can carry out stepless speed change and constant temperature control.


As a special factory in drying industry, we provide hundreds of set to customers for their use. As for working medium, it may be high temperature conduction heat oil or middle temperature steam. For drying the adhesive raw material, the factory has designed specially plate for you.


  Scope of Application:

  It is suitable for the raw materials that need to concentrate, mix and dry at low temperature(for example, biochemistry products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to oxidize, volatilize and have strong heat sensitive and toxity and not permitted to destroy its crystal in drying.

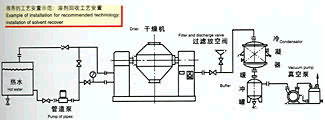

  Principle of Work:


  • Let heat source(for example, low pressure steam or heat conduct oil)pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell.



  • Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can e realized.



  • The raw material exists at the state of vacuum. The drop of steam pressure makes the moisture(solvent) at the surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture(solvent)of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and purpose of drying can be realized within a short time.




  Feature of Product:

  • When oil is used to heat,use automatic constant temperature control.It can be used for drying blology products and mine.Its temperature of operation can be adjusted from 20-160¡æ and within +2¡æ.



  • Compared with ordinal drier,its heat efficiency will be over 2 times.



  • The heat is indirect.So the raw material can not be polluted.It is conformity with the requirement of GMP.It is easy in washing and mintenance



Item
Type
name unit 100 200 350 500 750 1000 1500 2000 3000 4500
total volume L 100 200 350 500 750 1000 1500 2000 3000 4500
geating area L 50 100 175 250 375 500 750 1000 1500 2250
heating area m2 1.16 1.5 2 2.63 3.5 4.61 5.58 7.5 9.6 13.8
speed rpm
6
 4 4
power kw 0.75 1.1 1.5 1.5 2 3 3 4 5.5 7.5
height of rotating frame mm 1810 1910 2090 2195 2500 2665 2915 3055 3330 4210
total weight kg 1000 1300 1500 1800 2000 2300 2500 3500 5000 6000
design pressure inside tank mpa
--0.09¡«-0.096
design pressure inside jacket mpa
0.3
