Introduce of Product:

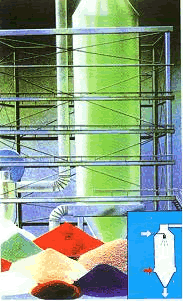

The material is sprayed into exiguity fog by nozzle on the top of tower. Follow the heat wind, the material is past, economizing energy, high effect, and wide used in food, dyestuff, chemical industry and so on.
Scope of Application:

Food Industry：Fatty milk powder, cocoa milk powder, substitute milk powder ,egg white food and plant ,oats ,chicken juice, coffee ,instant dissoluble tea ,seasoning meat ,protein ,soybean ,peanut protein , hydrolysate and so forth .Sugar ,corn syrup ,cornstarch ,glucose .pectin ,malt sugar , sorbic acid potassium and etc.

Medicine: Traditional Chinese medicine extract ,ointment ,yeast vitamin ,antibiotic amylase ,lipase and etc .

Plastics and resin : AB ABS emulsion medicine extract ,ointment ,yeast ,vitamin ,antibiotics and resin ;urea -formaldehyde resin ;formaldehyde resin ,polythene ,poly-chloroprene and etc.

Detergent :common washing powder ,advanced washing powder ,soap powder ,soda ash ,emulsifier ,brightening agent ,orthophosphoric acid and etc.

Chemical industry: Sodium fluoride (potassium),ALKALINE DYESTUFF and pigment , dyestuff intermediate ,compound fertilizer ,formic silicon acid ,catalyst, sulphuric acid agent ,amino acid ,white carbon and so on .

ceramic : aluminum oxide ,ceramic tile material ,magnesium oxide ,talcum and so on .

Other : Calmogastrin, hime chloride , stearic acid agent and the cooling spray .

On the Test Because the different products have the different drying technologies and particle rules, there is no single type of the spray drying machines that are suitable for various and different requirements. Now the spray is still regarded as a kind of technology. The test is the base of correctly choosing the types. The machine equipped by the "YIBU" Company is used specially for the users to carry out the technological text of the materials. This kind of practical manner makes that we have completed many turn-key projects, such as: washing powder, polymerized resin, white carbon,Mn3O4,soybean milk, lipase, sea cucumber Chinese traditional medicine and etc.

Main Technical Specifications:

Type	50	100	150	200	300	500	1000
Water evaporation capacity Kg/h	50	100	150	200	300	500	1000
Overall dimension mm	1600×8900	2000×11500	2400×13500	2800×14800	3200×15400	3800×18800	4600×22500
High-pressure pump pressure Mpa	2-10
Power Kw	8.5	14	22	24	30	82	30
Inlet air temperature ℃	300-350
Product water contents %	<5and 0.5 can be reached
Material restoration %	>97
Electric heating Kw	75	120	150	When the temperature is lower then 200, the parameters should be calculated according to the practical condition.
Electrically producing steam Mpa+Kw	0.5+54	0.6+90	0.6+108
hot furnace Kcal/h	100000	150000	200000	300000	400000	500000	1200000
