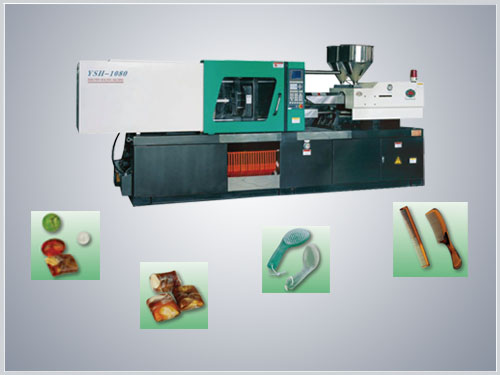

YSH Series dual-color injection molding machine for spechine for special purpose
A creative product is always accompanied with innovative technollgy.This series of machines has a set of combination nozzles and pipes in addition to traditional configuration,so independent dual material pipes are formed.During material ejection,two kinds of melt plastics can be ejected into the mold cavity through the same nozzle at the same time or at intervals.Without the need of changing the molds,special patterns and multiple colors can be created,which can directly increase the value added of the products .
|
项目
|
型号\单位
|
YSH1080
|
|
Screw type
|
|
A B
|
|
Screw diameter
|
mm
|
36 28
|
|
Screw L/D ratio
|
L/D
|
17.9 20.0
|
|
Theoretical shot voiume
|
cm3
|
157 67
|
|
Shot weight
|
g
|
142 60
|
|
Injection pressure
|
Mpa
|
160 165
|
|
Screw rotation speed
|
r.p.m
|
5-160
|
|
Clamping force
|
KN
|
1080
|
|
Opening stroke
|
mm
|
340
|
|
Mould thickness
|
mm
|
140-380
|
|
Space betwwen tie-bars
|
mm
|
360×360
|
|
Ejector tonnage
|
mm
|
φ125
|
|
Hydraulic ejection
|
KN
|
30
|
|
Ejector stroke
|
mm
|
80
|
|
Ejectior nomber
|
PC
|
5
|
|
Motor Power
|
KW
|
15
|
|
Heater capactiy
|
KW
|
11.5
|
|
Machine dimensions (L×W×H)
|
m
|
3.85×1.35×1.86
|
|
Machine weight
|
t
|
3
|
|
Oil tank capacity
|
L
|
200
|
|
|
|
|
|
