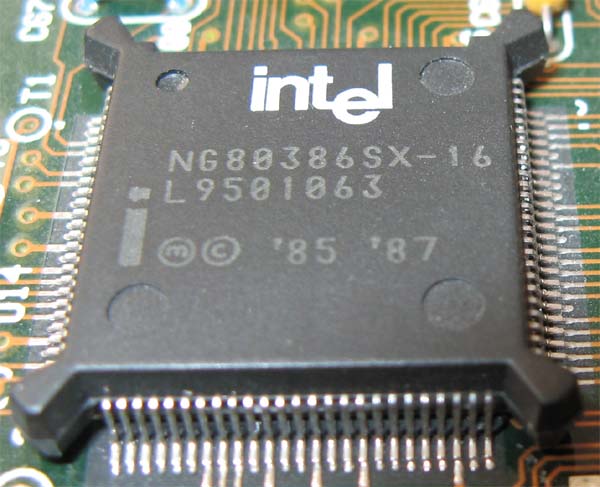

| NG80386SX-16 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 16 | |
| socket: | PQFP-100 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | - | |
| MHz: | 16 | L3: | - | made: | - | |
| rate: | 1 | volt: | 5 | s/n: | - | |
| FSB: | 16 | tranz.: | - | watt: | 0,75 (1,21) | |
Intel 386 SX / DX / RAPIDCAD - Home
Az Intel 80386, amely másként i386 vagy egyszerűen csak 386 néven is ismert, az Intel által kifejlesztett x86-os processzorcsalád első 32 bites tagja. 1985-ben mutatták be. Az első verziók 275 000 tranzisztort tartalmaztak és a kor több munkaállomásában és csúcskategóriás személyi számítógépében használták központi egységnek. Mivel utasításkészlete gyakorlatilag a 8086-os processzor 32 bites kiterjesztése, ez a processzor teljes mértékben visszafelé kompatibilis elődjeivel, azaz bináris és kód-kompatibilis egészen a 8086/8088 processzorokig, így változtatás nélkül képes futtatni a meglévő programkódot. Az i386SX-et az olcsóbb, otthoni, kisvállalati vagy oktatási célú PC-kbe szánt, 16 bites adatbusszal szerelt változata volt, míg az i386DX-et, a teljes változatot szánták komolyabb munkaállomásokba, kiszolgálókba. Bár a CPU belül teljesen 32 bites maradt, a 16 bites külső adatbusz egyszerűsítette az áramköri kialakítást és a teljes gyártási költséget, az i386SL-t laptopokba szánt, energiatakarékos változatként vezették be. wiki / cpuwrld
| NG80386SX-16 |
|
|||||
| class: | 80386 | micron: | 1,5 | bit: | 16 | |
| socket: | PQFP-100 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | - | |
| MHz: | 16 | L3: | - | made: | - | |
| rate: | 1 | volt: | 5 | s/n: | - | |
| FSB: | 16 | tranz.: | - | watt: | 0,75 (1,21) | |

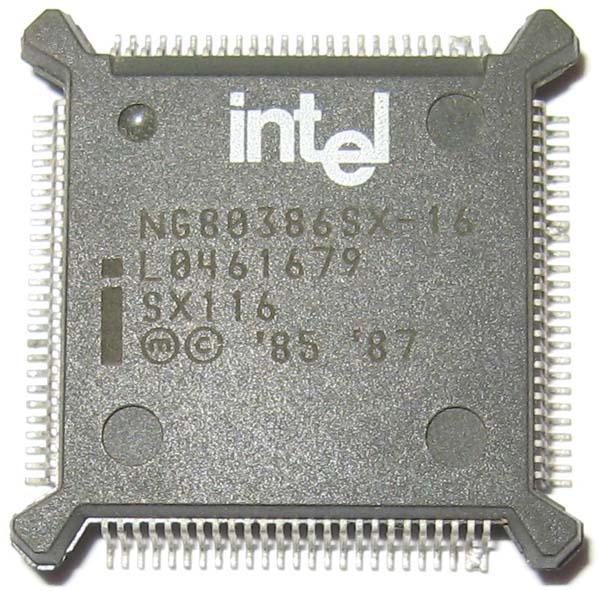

| NG80386SX-16 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 16 | |
| socket: | PQFP-100 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | - | |
| MHz: | 16 | L3: | - | made: | A4 | |
| rate: | 1 | volt: | 5 | s/n: | SX116 | |
| FSB: | 16 | tranz.: | - | watt: | 0,75 (1,21) | |

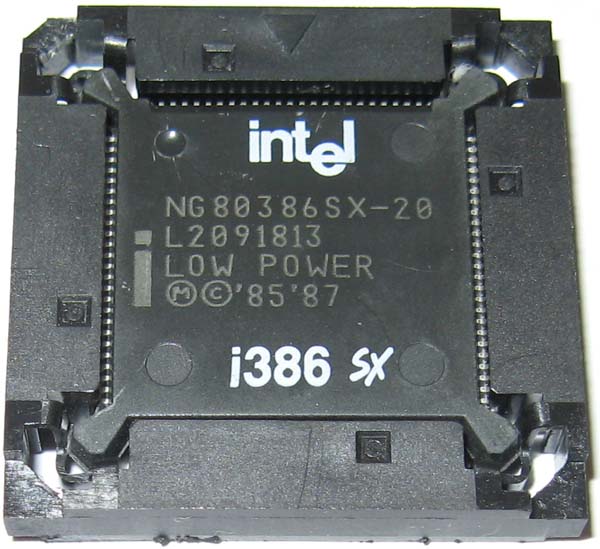

| NG80386SX-20 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 16 | |
| socket: | PQFP-100 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | Low Power | |
| MHz: | 20 | L3: | - | made: | - | |
| rate: | 1 | volt: | 5 | s/n: | - | |
| FSB: | 20 | tranz.: | - | watt: | 0,90 (1,21) | |

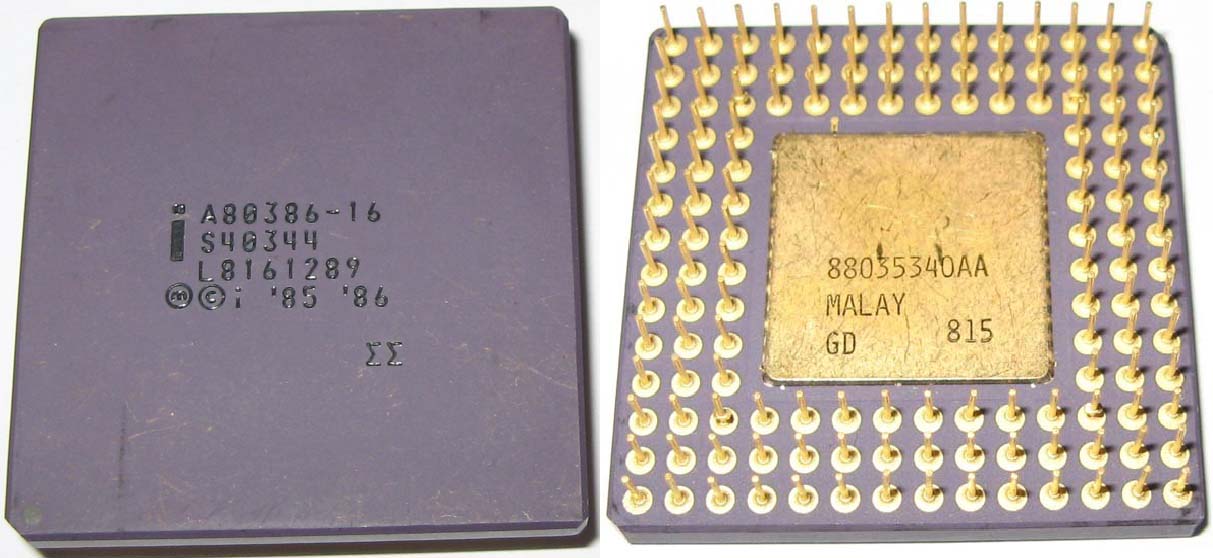

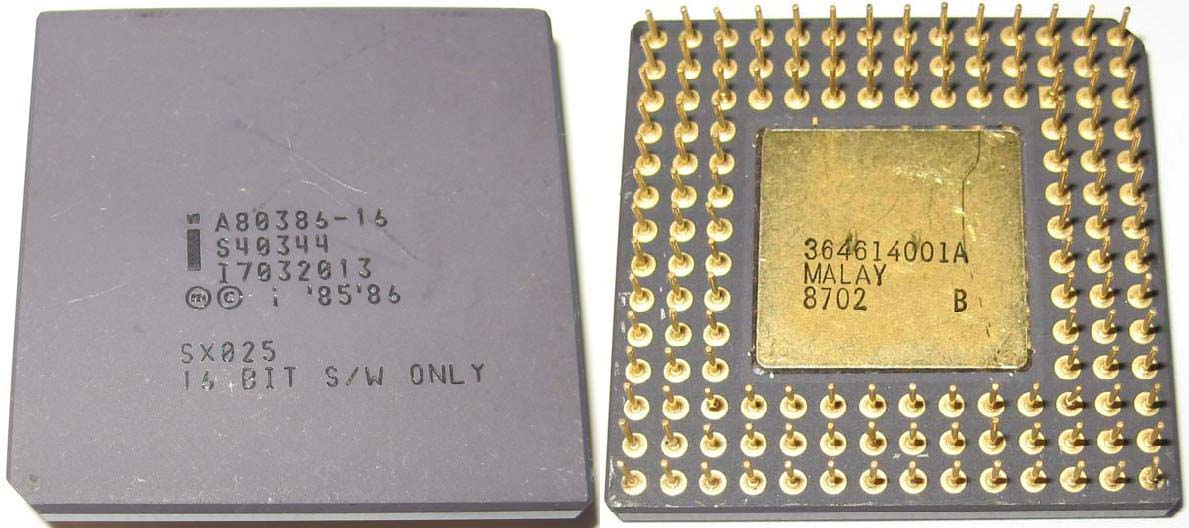

| A80386-16 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 16 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | - | |
| MHz: | 16 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | S40344 / SX025 | |
| FSB: | 16 | tranz.: | 275 000 | watt: | 1,85 (2,30) | |
| A80386-16 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | - | |
| MHz: | 16 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | S40344 | |
| FSB: | 16 | tranz.: | 275 000 | watt: | 1,85 (2,30) | |

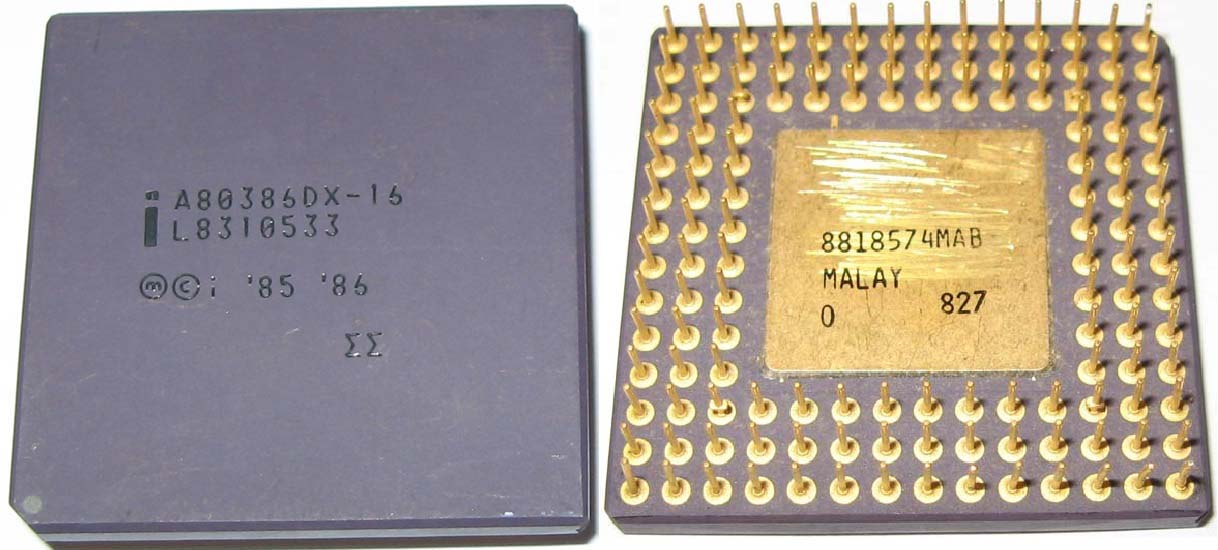

| A80386DX-16 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 16 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | - | |
| FSB: | 16 | tranz.: | 275 000 | watt: | 1,85 (2,30) | |

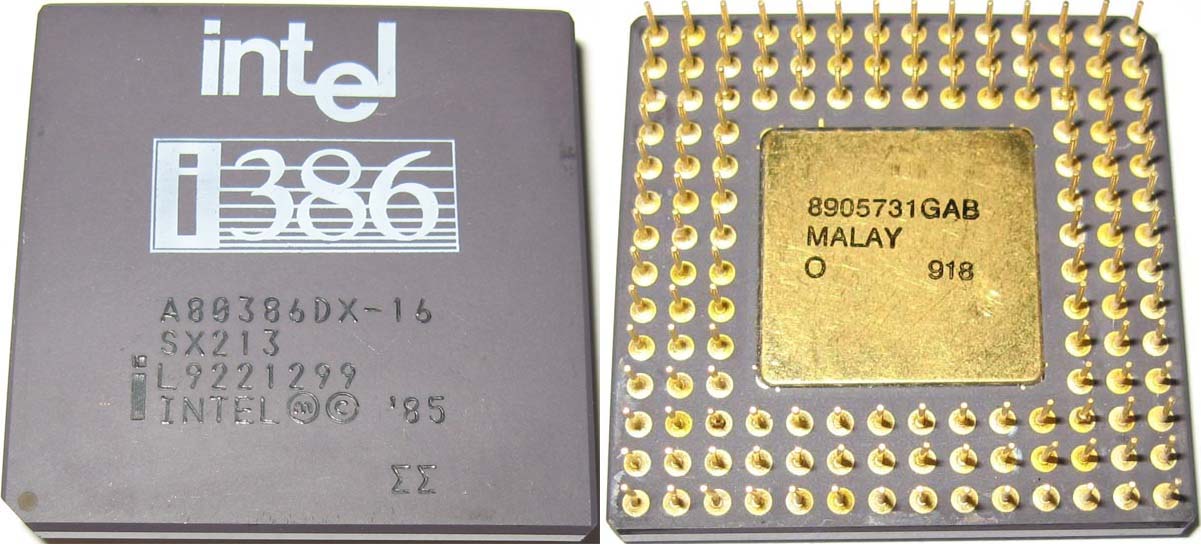

| A80386DX-16 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 16 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | SX213 | |
| FSB: | 16 | tranz.: | 275 000 | watt: | 1,85 (2,30) | |

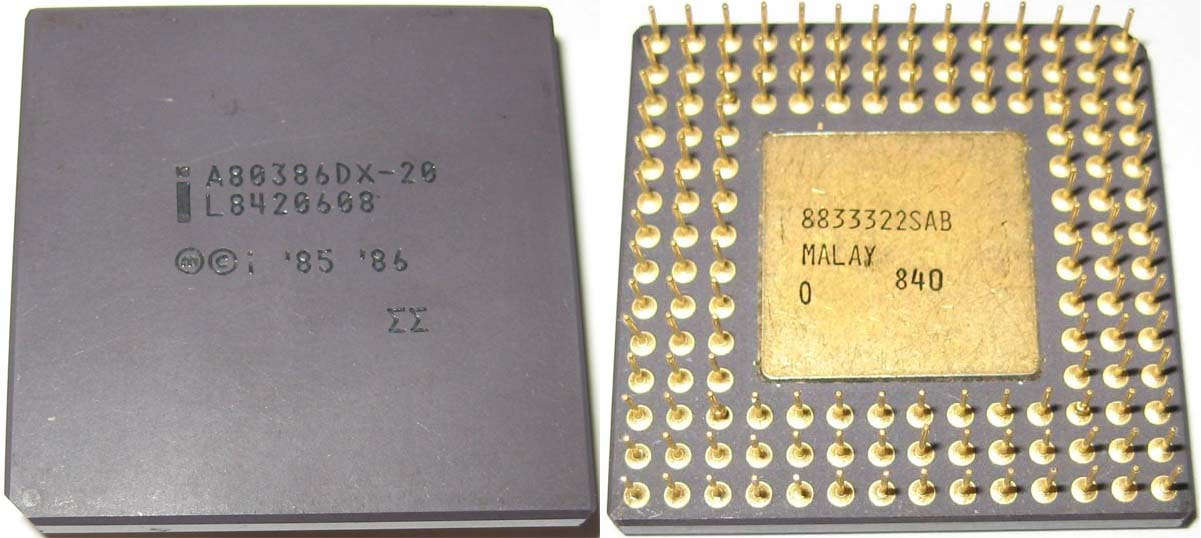

| A80386DX-20 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 20 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | - | |
| FSB: | 20 | tranz.: | 275 000 | watt: | 2,30 (2,63) | |

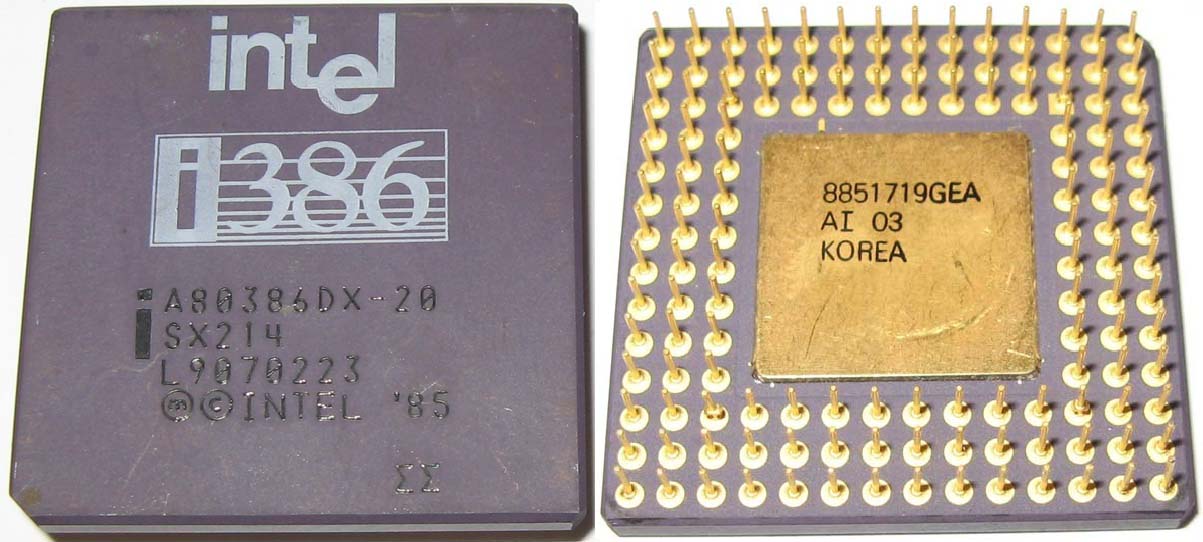

| A80386DX-20 - ver. 1 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 20 | L3: | - | made: | Korea | |
| rate: | 1 | volt: | 5 | s/n: | SX214 | |
| FSB: | 20 | tranz.: | 275 000 | watt: | 2,30 (2,63) | |

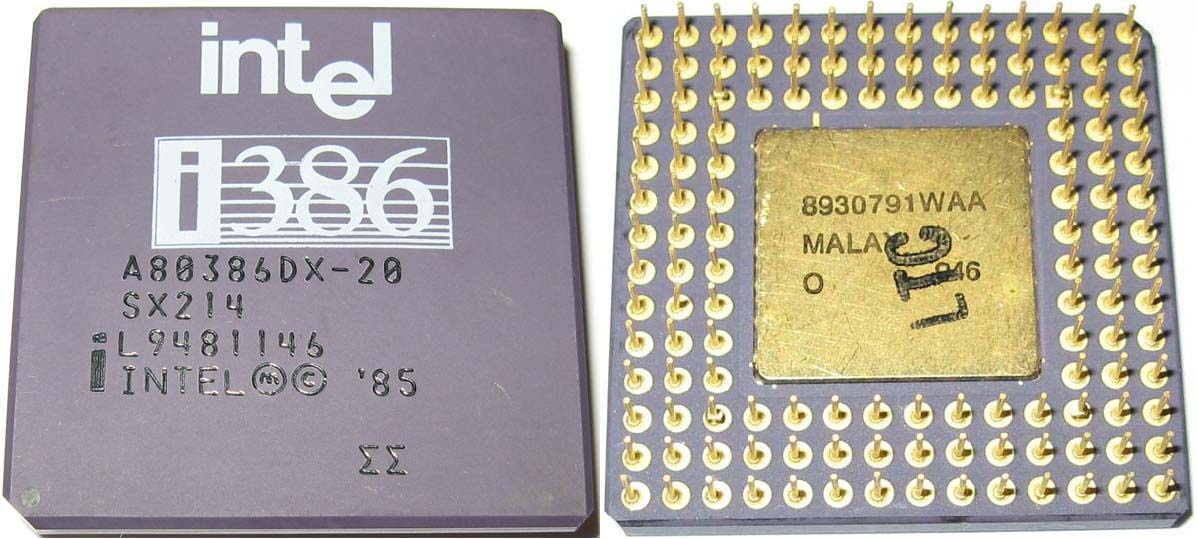

| A80386DX-20 - ver. 2 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 20 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | SX214 | |
| FSB: | 20 | tranz.: | 275 000 | watt: | 2,30 (2,63) | |

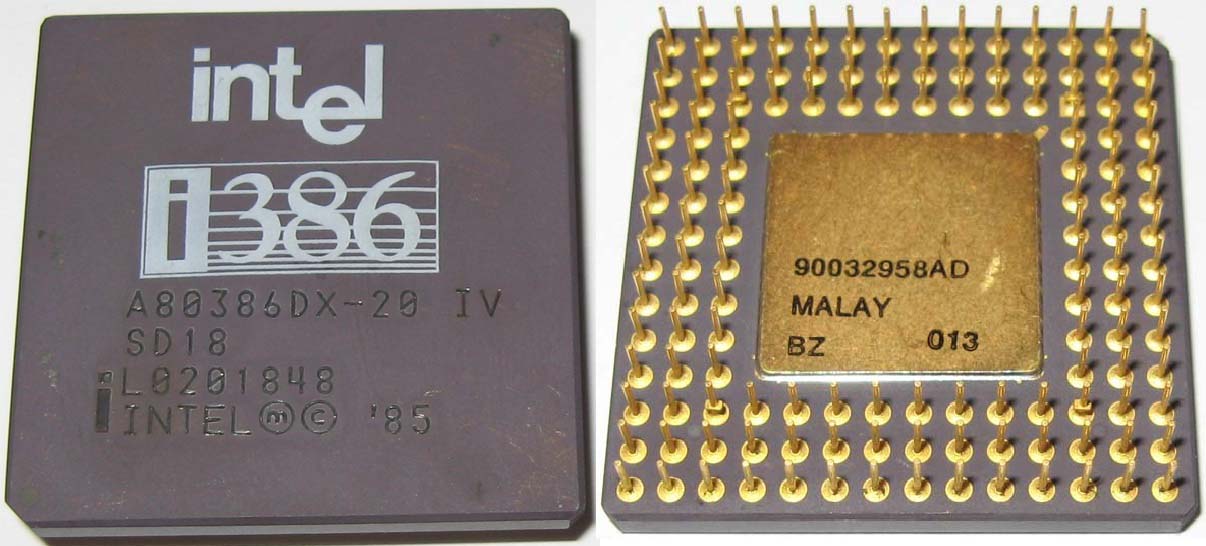

| A80386DX-20 IV |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 20 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | SD18 | |
| FSB: | 20 | tranz.: | 275 000 | watt: | 1,00 (1,37) | |

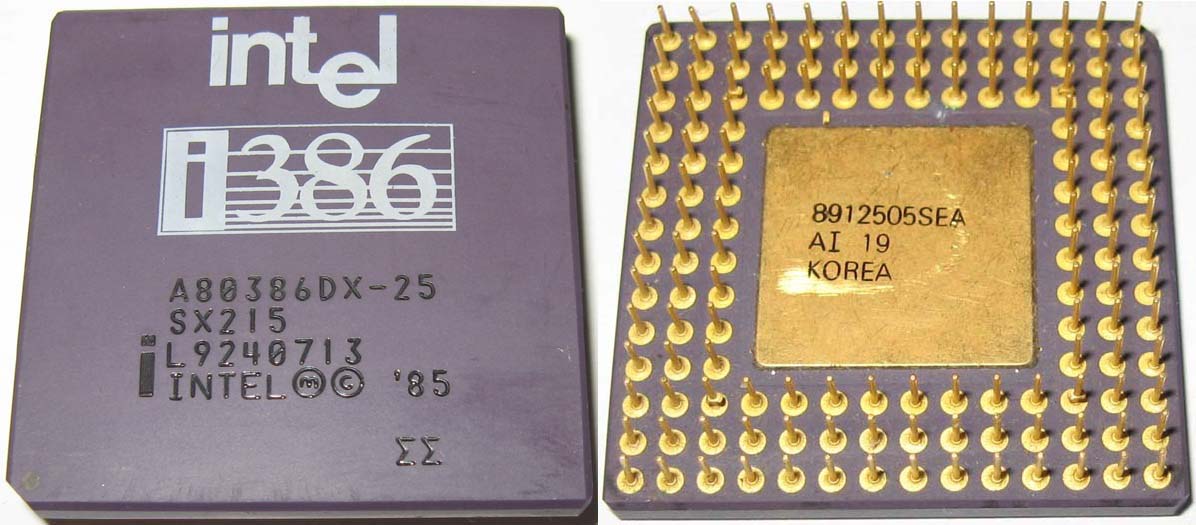

| A80386DX-25 |
 |
|||||
| class: | 80386 | micron: | 1,5 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 25 | L3: | - | made: | Korea | |
| rate: | 1 | volt: | 5 | s/n: | SX215 | |
| FSB: | 25 | tranz.: | 275 000 | watt: | 2,89 | |

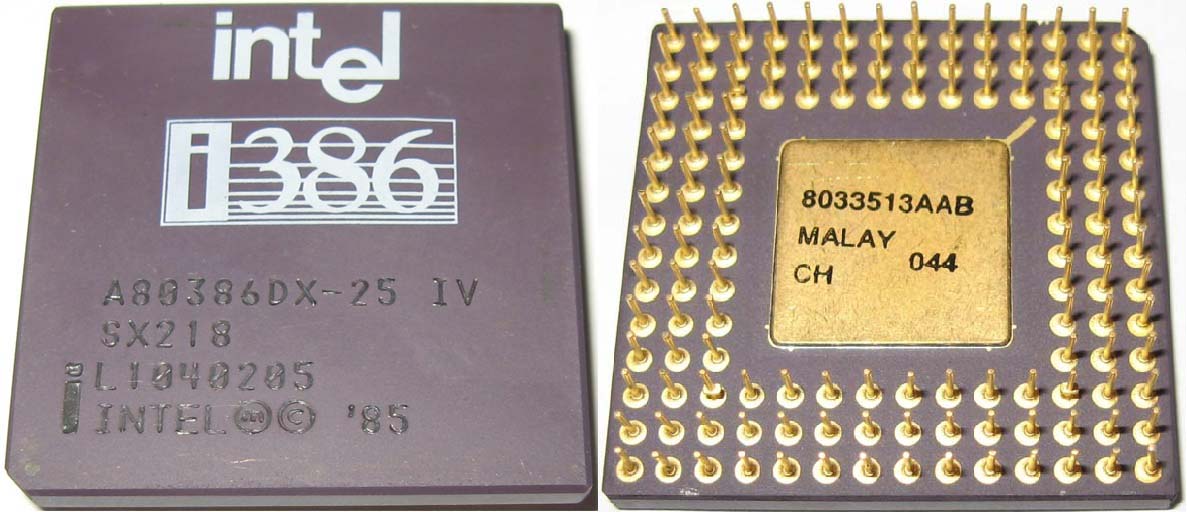

| A80386DX-25 IV - ver. 1 |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 25 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | SX218 | |
| FSB: | 25 | tranz.: | 275 000 | watt: | 1,20 (1,68) | |

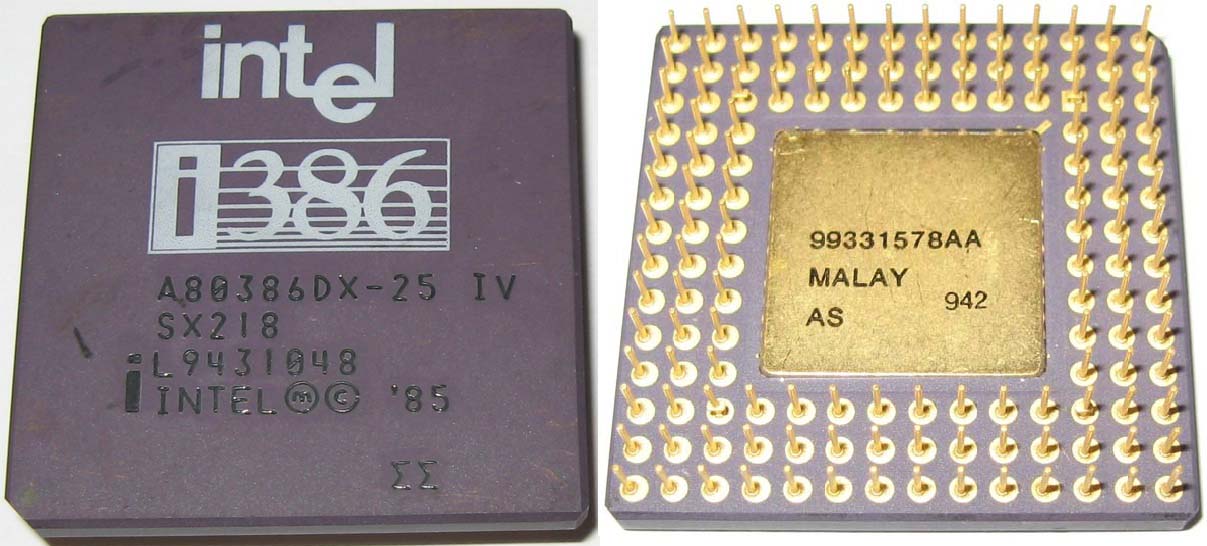

| A80386DX-25 IV - ver. 2 |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 25 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | SX218 | |
| FSB: | 25 | tranz.: | 275 000 | watt: | 1,20 (1,68) | |

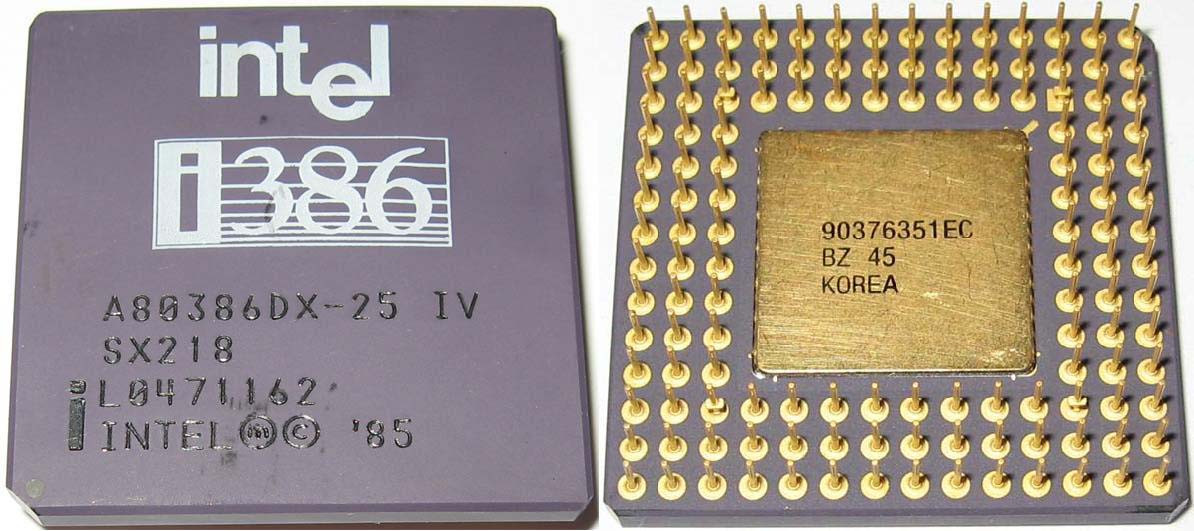

| A80386DX-25 IV - ver. 3 |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 25 | L3: | - | made: | Korea | |
| rate: | 1 | volt: | 5 | s/n: | SX218 | |
| FSB: | 25 | tranz.: | 275 000 | watt: | 1,20 (1,68) | |

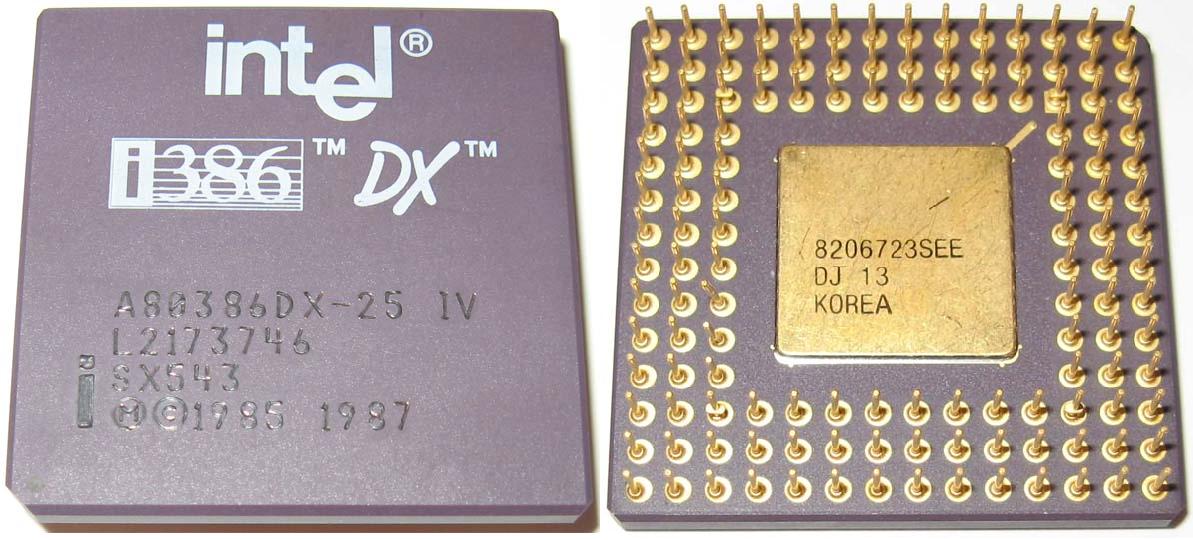

| A80386DX-25 IV |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 25 | L3: | - | made: | Korea | |
| rate: | 1 | volt: | 5 | s/n: | SX543 | |
| FSB: | 25 | tranz.: | 275 000 | watt: | 1,20 (1,68) | |

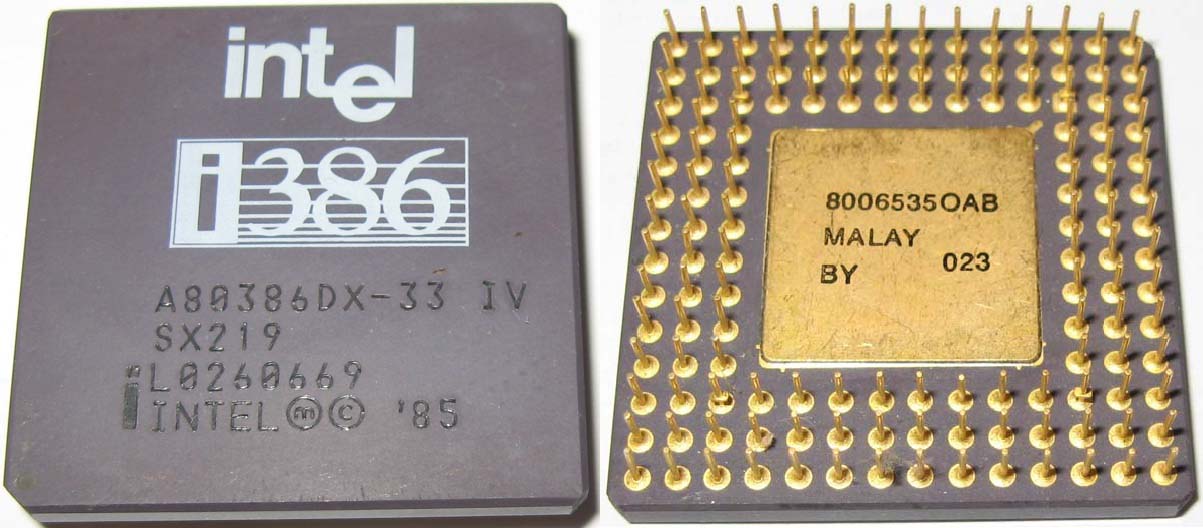

| A80386DX-33 IV |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 33 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | SX219 | |
| FSB: | 33 | tranz.: | 275 000 | watt: | 1,50 (2,05) | |

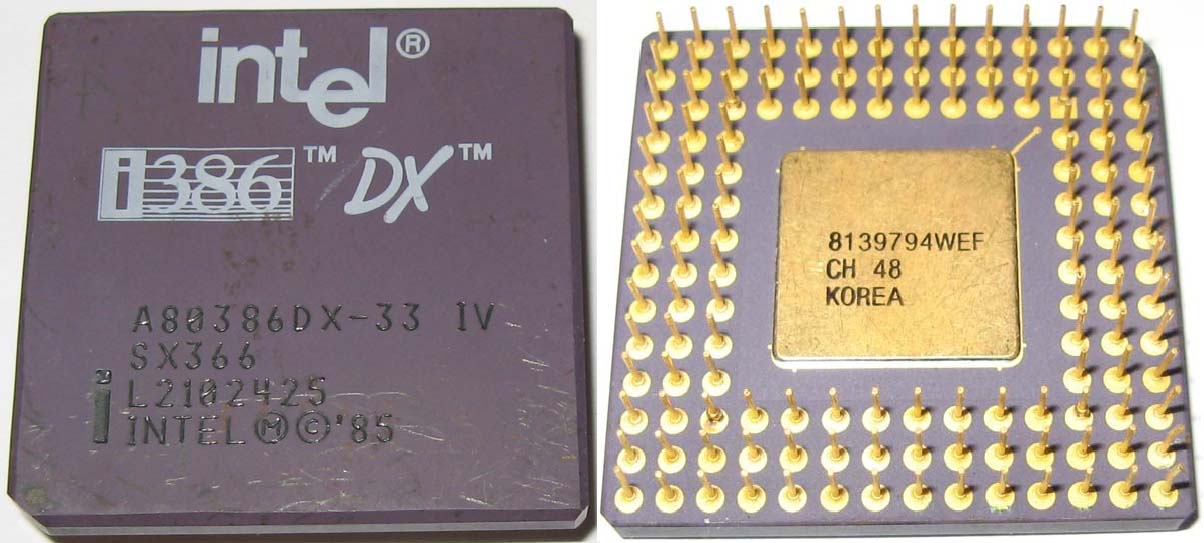

| A80386DX-33 IV - ver. 1 |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 33 | L3: | - | made: | Korea | |
| rate: | 1 | volt: | 5 | s/n: | SX366 | |
| FSB: | 33 | tranz.: | 275 000 | watt: | 1,50 (2,05) | |

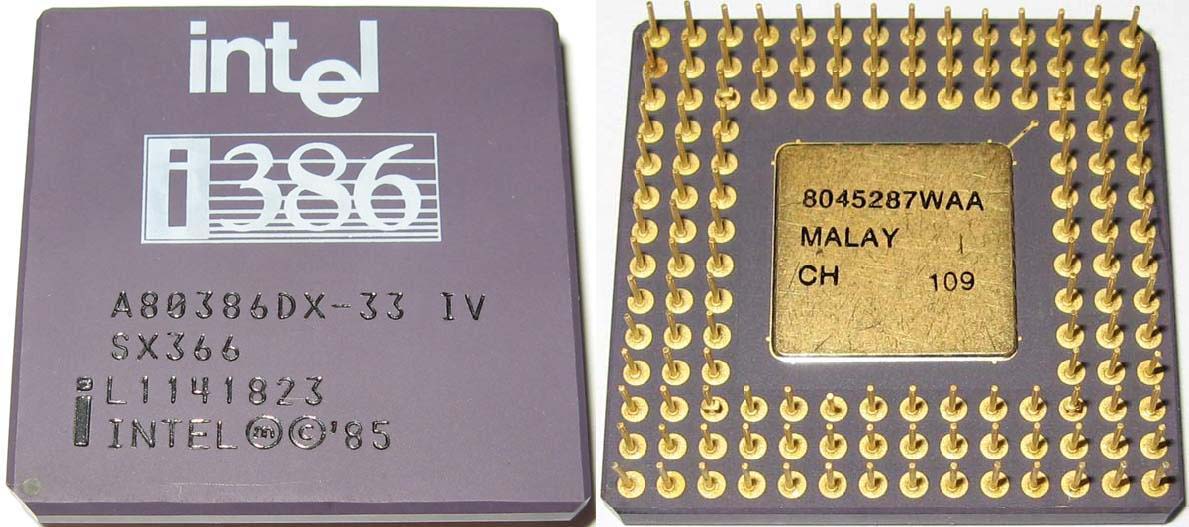

| A80386DX-33 IV - ver. 2 |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 33 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | SX366 | |
| FSB: | 33 | tranz.: | 275 000 | watt: | 1,50 (2,05) | |

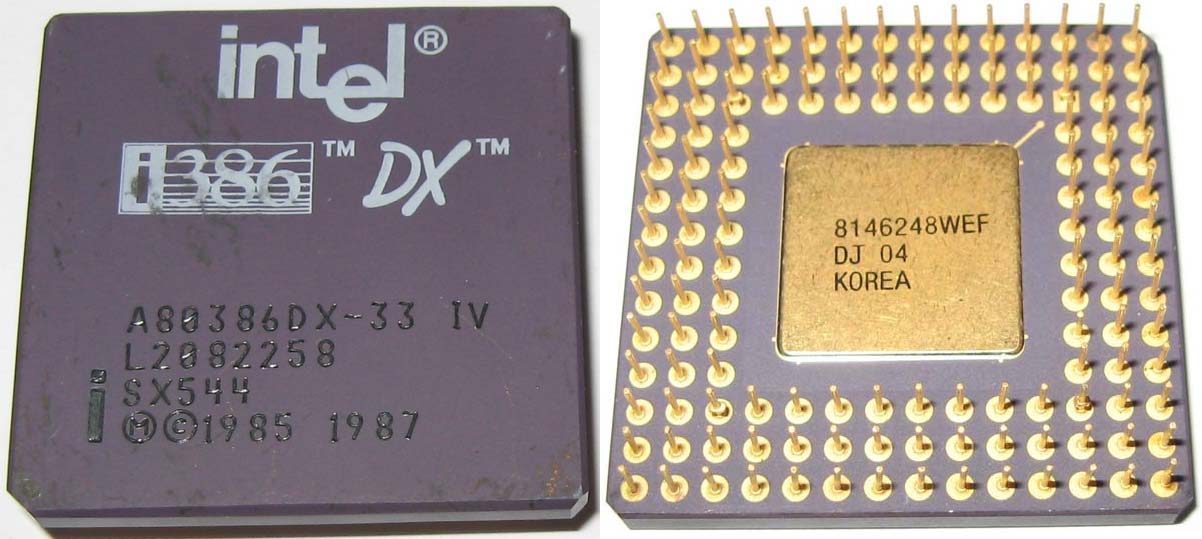

| A80386DX-33 IV - ver. 1 |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 33 | L3: | - | made: | Korea | |
| rate: | 1 | volt: | 5 | s/n: | SX544 | |
| FSB: | 33 | tranz.: | 275 000 | watt: | 1,50 (2,05) | |

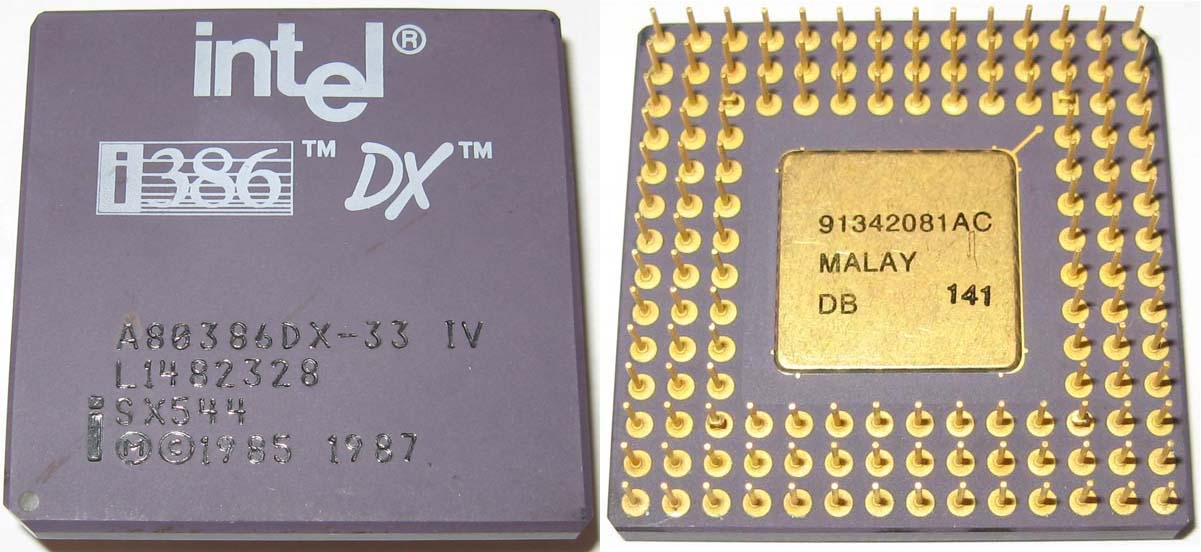

| A80386DX-33 IV - ver. 2 |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | iAPX-386 | L2: | - | id: | DX | |
| MHz: | 33 | L3: | - | made: | Malay | |
| rate: | 1 | volt: | 5 | s/n: | SX544 | |
| FSB: | 33 | tranz.: | 275 000 | watt: | 1,50 (2,05) | |

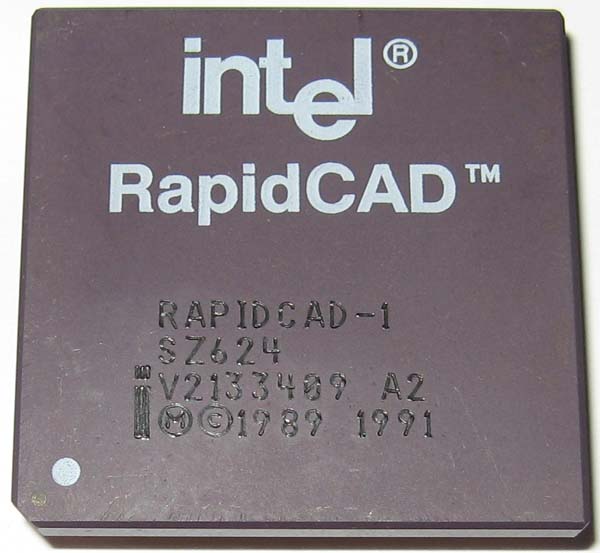

| RAPIDCAD-1 |
 |
|||||
| class: | 80386 | micron: | 1 | bit: | 32 | |
| socket: | PGA-132 | L1: | - | core: | 1 | |
| code: | - | L2: | - | id: | - | |
| MHz: | xx | L3: | - | made: | USA | |
| rate: | 1 | volt: | 5 | s/n: | SZ624 | |
| FSB: | xx | tranz.: | 275 000 | watt: | - | |
