| A80502100 |
 |
|||||
| class: | Pentium I | micron: | 0,6 | bit: | 32 | |
| socket: | SPGA-296 | L1: | 8+8 | core: | 1 | |
| code: | P54 | L2: | - | id: | Pentium mobile | |
| MHz: | 100 | L3: | - | made: | A4 - iPP | |
| rate: | 1,5 | volt: | 2,9 | s/n: | SK124 - mA4 | |
| FSB: | 66 | tranz.: | 3 300 000 | watt: | 3,90 (9,79) | |
Intel Pentium mobile P5/P54 - CPGA FSB 50/60/66 MHz - 75 * 90 * 100 * 120 * 133 * 150 MHz / TCP320 - Home
CPGA (Ceramic Staggered Pin Grid Array)

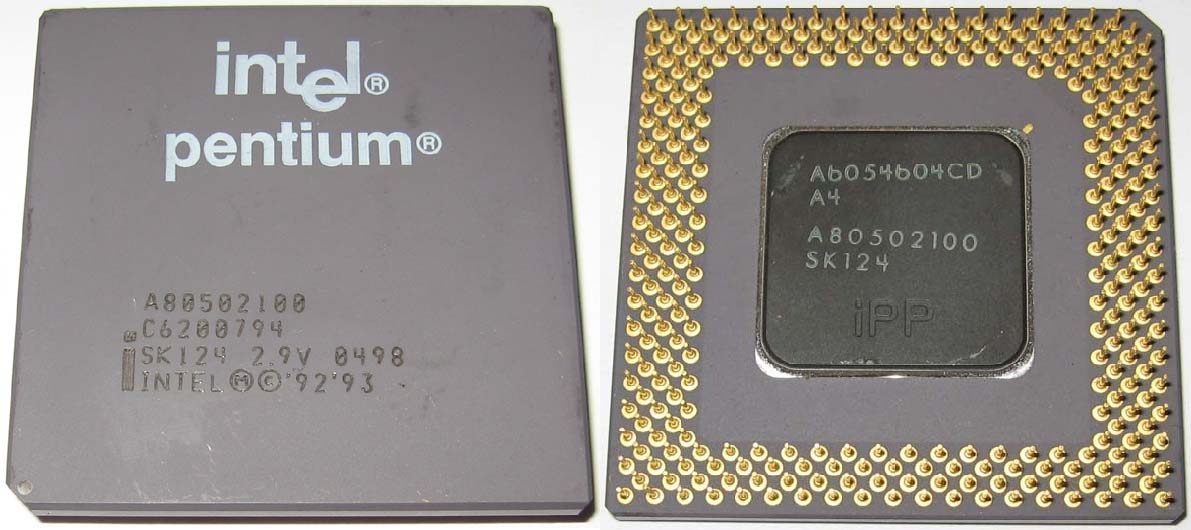

| A80502100 |
|
|||||
| class: | Pentium I | micron: | 0,6 | bit: | 32 | |
| socket: | SPGA-296 | L1: | 8+8 | core: | 1 | |
| code: | P54 | L2: | - | id: | Pentium mobile | |
| MHz: | 100 | L3: | - | made: | A4 - iPP | |
| rate: | 1,5 | volt: | 2,9 | s/n: | SK124 - mA4 | |
| FSB: | 66 | tranz.: | 3 300 000 | watt: | 3,90 (9,79) | |

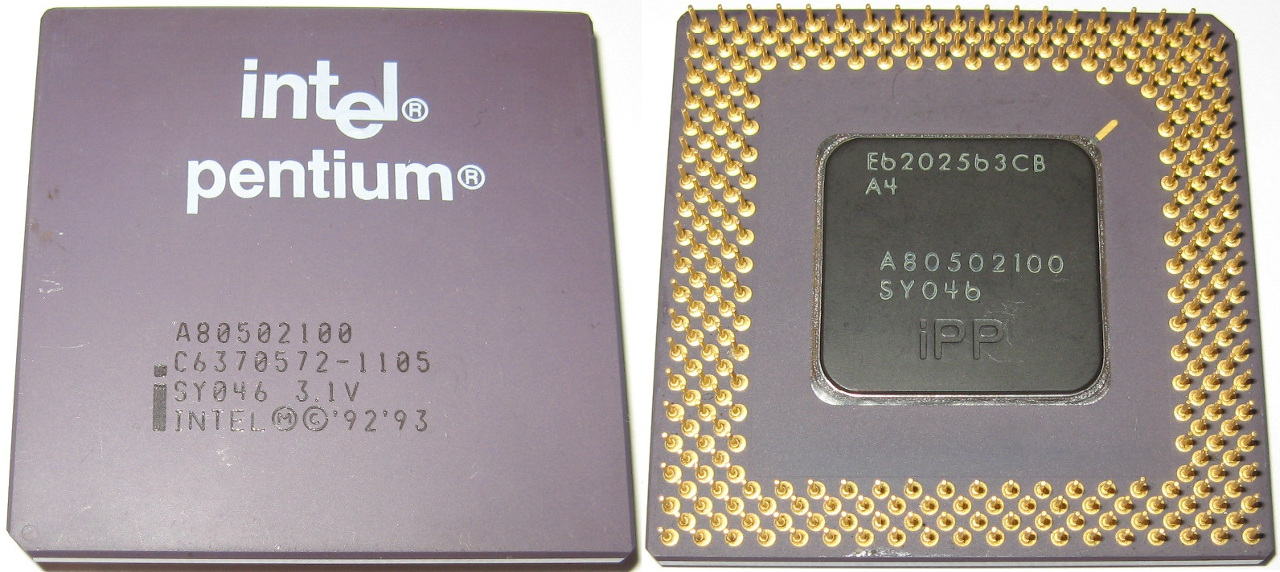

| A80502100 |
 |
|||||
| class: | Pentium I | micron: | 0,6 | bit: | 32 | |
| socket: | SPGA-296 | L1: | 8+8 | core: | 1 | |
| code: | P54 | L2: | - | id: | Pentium mobile | |
| MHz: | 100 | L3: | - | made: | A4 - iPP | |
| rate: | 1,5 | volt: | 3,1 | s/n: | SY046 - mcC0 | |
| FSB: | 66 | tranz.: | 3 300 000 | watt: | 3,90 (9,79) | |

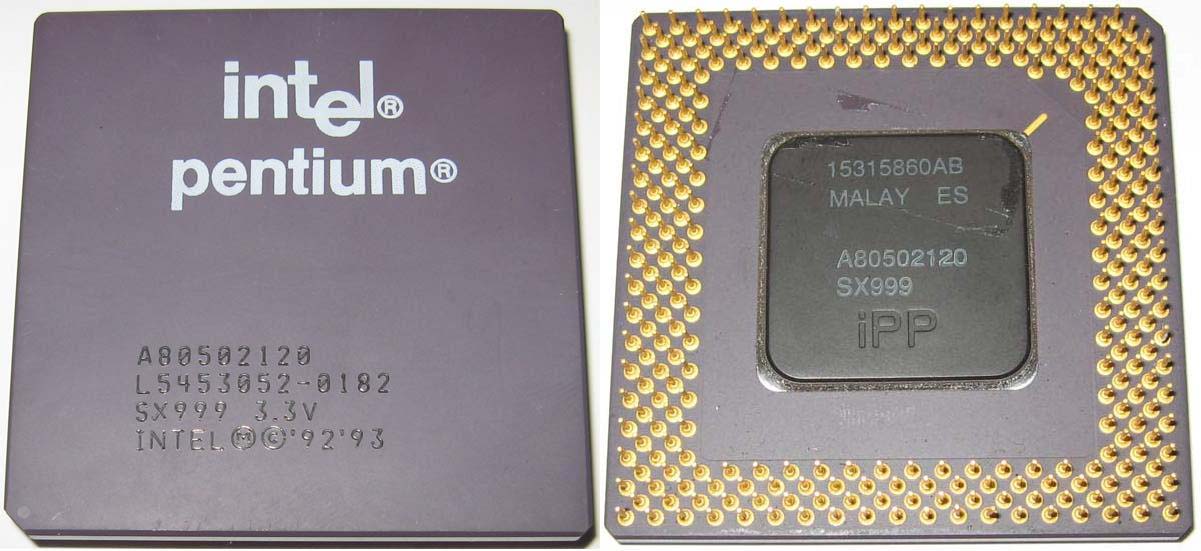

| A80502120 |
 |
|||||
| class: | Pentium I | micron: | 0,35 | bit: | 32 | |
| socket: | SPGA-296 | L1: | 8+8 | core: | 1 | |
| code: | P54 | L2: | - | id: | Pentium mobile | |
| MHz: | 120 | L3: | - | made: | Malay - iPP | |
| rate: | 2 | volt: | 3,3 | s/n: | SX999 - mcB1 | |
| FSB: | 60 | tranz.: | 3 300 000 | watt: | 3,50 (8,77) | |

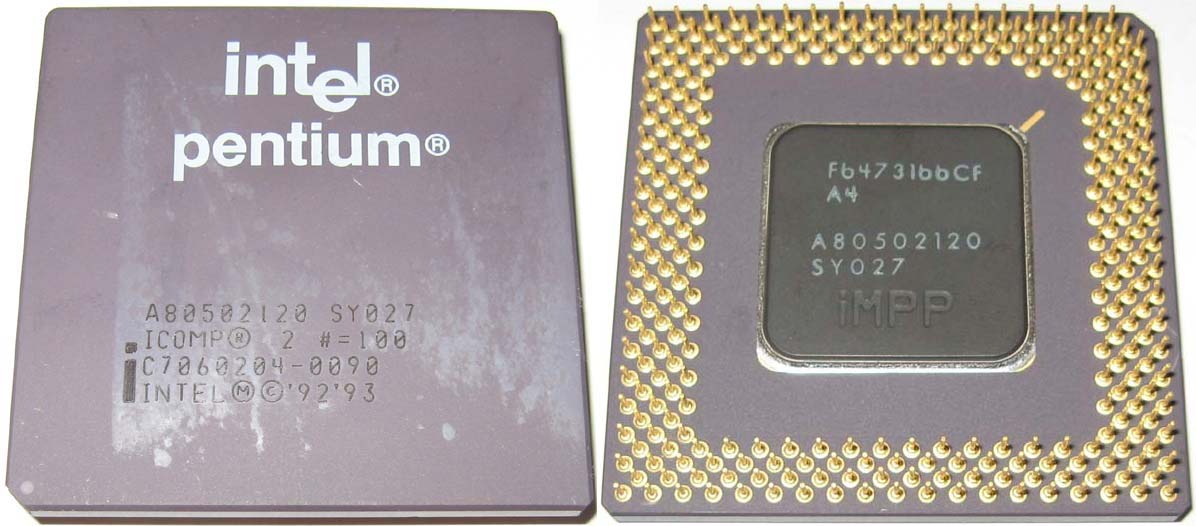

| A80502120 |
 |
|||||
| class: | Pentium I | micron: | 0,35 | bit: | 32 | |
| socket: | SPGA-296 | L1: | 8+8 | core: | 1 | |
| code: | P54 | L2: | - | id: | Pentium mobile | |
| MHz: | 120 | L3: | - | made: | A4 - iMPP | |
| rate: | 2 | volt: | 2,9 | s/n: | SY027 - mcC0 | |
| FSB: | 60 | tranz.: | 3 300 000 | watt: | 3,50 (8,77) | |

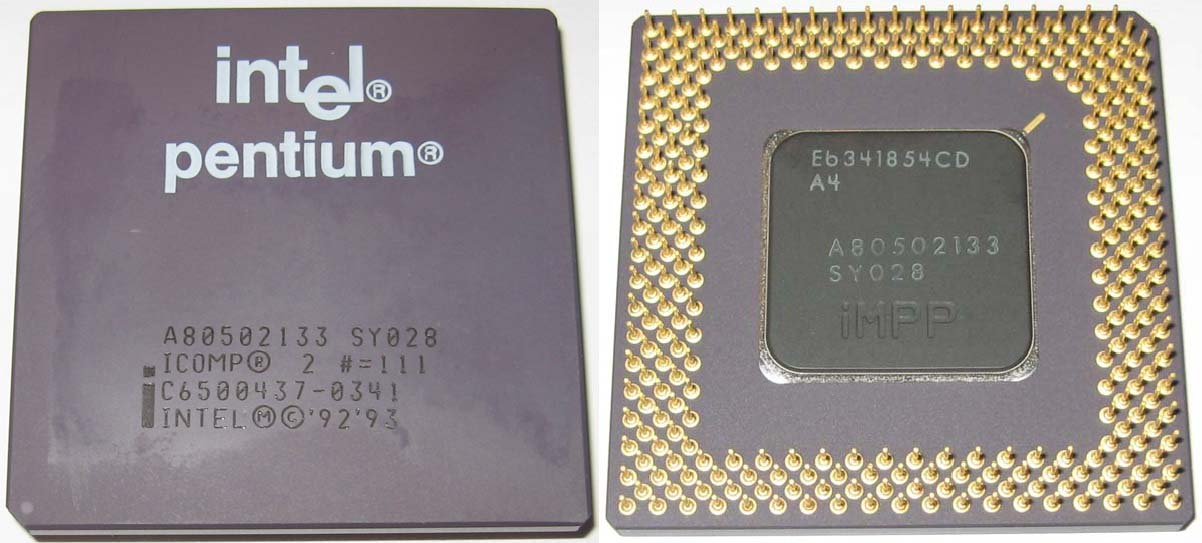

| A80502133 |
 |
|||||
| class: | Pentium I | micron: | 0,35 | bit: | 32 | |
| socket: | SPGA-296 | L1: | 8+8 | core: | 1 | |
| code: | P54 | L2: | - | id: | Pentium mobile | |
| MHz: | 133 | L3: | - | made: | A4 - iMPP | |
| rate: | 2,5 | volt: | 2,9 | s/n: | SY028 - mcC0 | |
| FSB: | 66 | tranz.: | 3 300 000 | watt: | 4,00 (9,74) | |
|

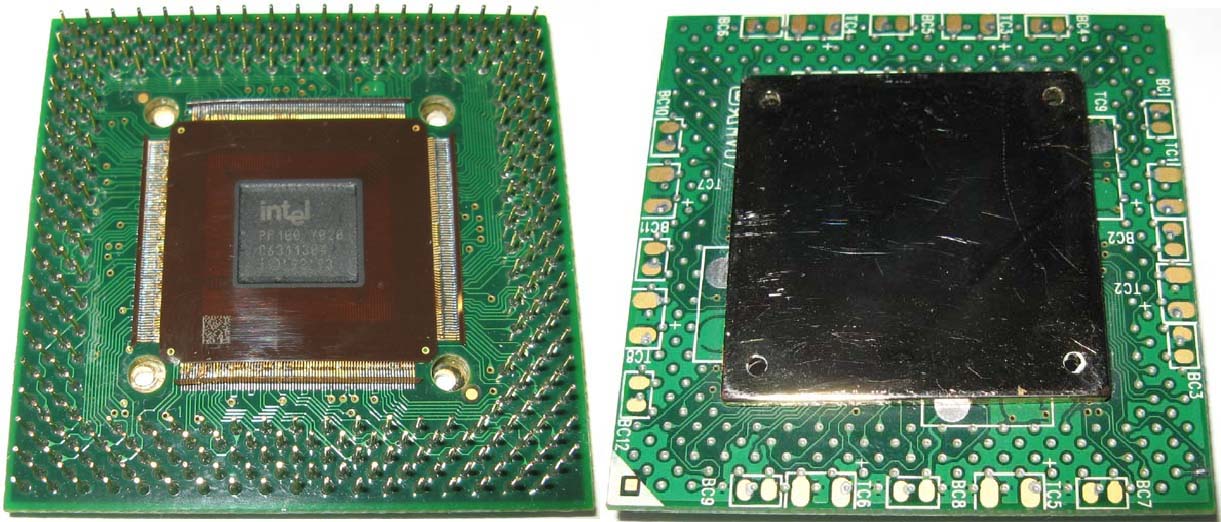

TCP320 (Tape
Carrier Package) - up PP100 |
 |
|||||
| class: | Pentium | micron: | 0,35 | bit: | 32 | |
| socket: | TCP320 | L1: | 8+8 | core: | 1 | |
| code: | P5 | L2: | - | id: | Pentium mobile | |
| MHz: | 100 | L3: | - | made: | - | |
| rate: | 1,5 | volt: | 2,9 | s/n: | Y020 | |
| FSB: | 66 | tranz.: | 3 300 000 | watt: | 3,00 (7,62) | |

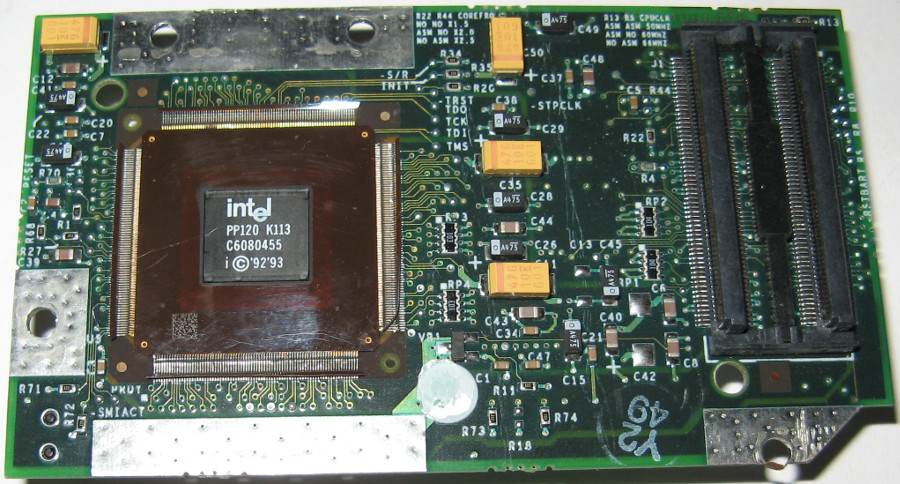

| PP120 |
 |
|||||
| class: | Pentium | micron: | 0,35 | bit: | 32 | |
| socket: | TCP320 | L1: | 8+8 | core: | 1 | |
| code: | P5 | L2: | - | id: | Pentium mobile | |
| MHz: | 120 | L3: | - | made: | - | |
| rate: | 2 | volt: | 2,9 | s/n: | K113 | |
| FSB: | 60 | tranz.: | 3 300 000 | watt: | 3,50 (8,77) | |
