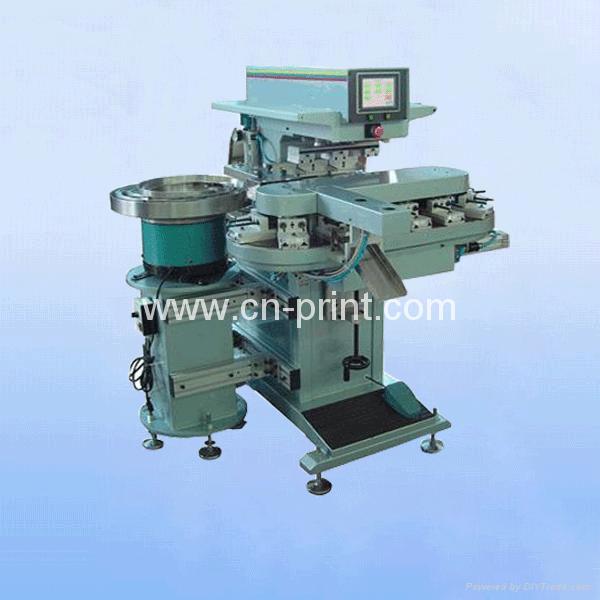

Full Auto Pad Printer EPM-300P is special designed for srecial plastic  part ,metal part , special inquire with costomer, hing printig speed ,priting speed aout 5000pcs/ hour and high quality .

This machine can print to  three sides  per part, four size per part ,and can print to cylinder products,  . It is automatic loading, automatic rotation, automatic printing on three sides, automatic unloading.

Feature :


1. automatic loading, save manpower.

2. with sealed ink cup so that save ink, enviroment-friendly and reduce thinner smell.

3. High  printing speed, printing single color on three sides at one time.

4. accurate positioning, apply pneumatic  type to locate the right position on three printing place  of conveyor. With precise and stable positioning.

5.Controlled by advanced and programmable controller (PLC).

6.touch screen operating system is very friendly.

7.equipped with automatic four-digit counter.

8.automatic rotation three times, completed printing three sides.

9.With flexible application. you can choose one, two, three sides printing. And the printing speed is same.

10.Printing speed can be adjusted to meet different printing requirement.

11. you can print noneffective  toward front-back. Gel donot drop so that  prevent ink dry when pause.

12.Ink cup can be adjusted to meet three color independent, easy chromatography

13. Up-down travel route of Silicone pad, speed can be adjusted, with very flexible.

14. stick ink twice and pad printing one time in order to obtain thick ink film printing.

15. automatic unloading system

16. according to the needs of customers, equiped with two function program, single-cycle printing and full automatic printing

17. pneumatic components are from  FESTO (Germany company)and SMC (Japan company). power flow smoothly, pneumatic components are durable.

18. a special shock absorption device, the machine running is very stable, superior performance.

19. structure of cast-aluminum and alloy, lightweight while stable, precision of the structure and high efficiency.

20. The control panel board is made by touch-sensitive system. You  can select pad printing function directly, senstive respond, easy to use.
