2.1 Implicit Parallelism: Trends in Microprocessor Architectures*

While microprocessor technology has delivered significant improvements in clock speeds over the past decade, it has also exposed a variety of other performance bottlenecks. To alleviate these bottlenecks, microprocessor designers have explored alternate routes to cost-effective performance gains. In this section, we will outline some of these trends with a view to understanding their limitations and how they impact algorithm and code development. The objective here is not to provide a comprehensive description of processor architectures. There are several excellent texts referenced in the bibliography that address this topic.

Clock speeds of microprocessors have posted impressive gains - two to three orders of magnitude over the past 20 years. However, these increments in clock speed are severely diluted by the limitations of memory technology. At the same time, higher levels of device integration have also resulted in a very large transistor count, raising the obvious issue of how best to utilize them. Consequently, techniques that enable execution of multiple instructions in a single clock cycle have become popular. Indeed, this trend is evident in the current generation of microprocessors such as the Itanium, Sparc Ultra, MIPS, and Power4. In this section, we briefly explore mechanisms used by various processors for supporting multiple instruction execution.

2.1.1 Pipelining and Superscalar Execution

Processors have long relied on pipelines for improving execution rates. By overlapping various stages in instruction execution (fetch, schedule, decode, operand fetch, execute, store, among others), pipelining enables faster execution. The assembly-line analogy works well for understanding pipelines. If the assembly of a car, taking 100 time units, can be broken into 10 pipelined stages of 10 units each, a single assembly line can produce a car every 10 time units! This represents a 10-fold speedup over producing cars entirely serially, one after the other. It is also evident from this example that to increase the speed of a single pipeline, one would break down the tasks into smaller and smaller units, thus lengthening the pipeline and increasing overlap in execution. In the context of processors, this enables faster clock rates since the tasks are now smaller. For example, the Pentium 4, which operates at 2.0 GHz, has a 20 stage pipeline. Note that the speed of a single pipeline is ultimately limited by the largest atomic task in the pipeline. Furthermore, in typical instruction traces, every fifth to sixth instruction is a branch instruction. Long instruction pipelines therefore need effective techniques for predicting branch destinations so that pipelines can be speculatively filled. The penalty of a misprediction increases as the pipelines become deeper since a larger number of instructions need to be flushed. These factors place limitations on the depth of a processor pipeline and the resulting performance gains.

An obvious way to improve instruction execution rate beyond this level is to use multiple pipelines. During each clock cycle, multiple instructions are piped into the processor in parallel. These instructions are executed on multiple functional units. We illustrate this process with the help of an example.

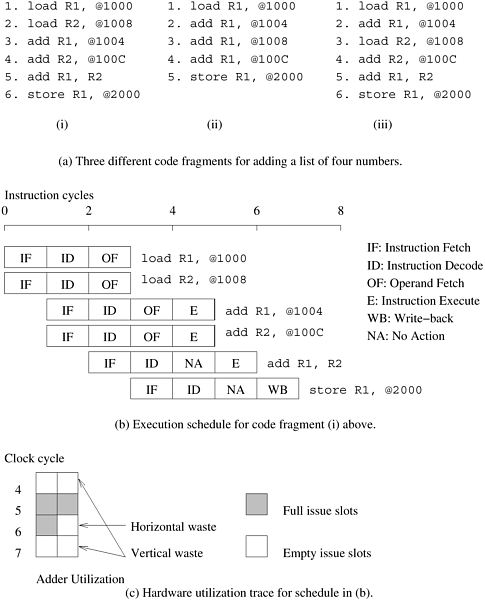

In principle, superscalar execution seems natural, even simple. However, a number of issues need to be resolved. First, as illustrated in Example 2.1, instructions in a program may be related to each other. The results of an instruction may be required for subsequent instructions. This is referred to as true data dependency. For instance, consider the second code fragment in Figure 2.1 for adding four numbers. There is a true data dependency between load R1, @1000 and add R1, @1004, and similarly between subsequent instructions. Dependencies of this type must be resolved before simultaneous issue of instructions. This has two implications. First, since the resolution is done at runtime, it must be supported in hardware. The complexity of this hardware can be high. Second, the amount of instruction level parallelism in a program is often limited and is a function of coding technique. In the second code fragment, there can be no simultaneous issue, leading to poor resource utilization. The three code fragments in Figure 2.1(a) also illustrate that in many cases it is possible to extract more parallelism by reordering the instructions and by altering the code. Notice that in this example the code reorganization corresponds to exposing parallelism in a form that can be used by the instruction issue mechanism.

Another source of dependency between instructions results from the finite resources shared by various pipelines. As an example, consider the co-scheduling of two floating point operations on a dual issue machine with a single floating point unit. Although there might be no data dependencies between the instructions, they cannot be scheduled together since both need the floating point unit. This form of dependency in which two instructions compete for a single processor resource is referred to as resource dependency.

The flow of control through a program enforces a third form of dependency between instructions. Consider the execution of a conditional branch instruction. Since the branch destination is known only at the point of execution, scheduling instructions a priori across branches may lead to errors. These dependencies are referred to as branch dependencies or procedural dependencies and are typically handled by speculatively scheduling across branches and rolling back in case of errors. Studies of typical traces have shown that on average, a branch instruction is encountered between every five to six instructions. Therefore, just as in populating instruction pipelines, accurate branch prediction is critical for efficient superscalar execution.

The ability of a processor to detect and schedule concurrent instructions is critical to superscalar performance. For instance, consider the third code fragment in Figure 2.1 which also computes the sum of four numbers. The reader will note that this is merely a semantically equivalent reordering of the first code fragment. However, in this case, there is a data dependency between the first two instructions - load R1, @1000 and add R1, @1004. Therefore, these instructions cannot be issued simultaneously. However, if the processor had the ability to look ahead, it would realize that it is possible to schedule the third instruction - load R2, @1008 - with the first instruction. In the next issue cycle, instructions two and four can be scheduled, and so on. In this way, the same execution schedule can be derived for the first and third code fragments. However, the processor needs the ability to issue instructions out-of-order to accomplish desired reordering. The parallelism available in in-order issue of instructions can be highly limited as illustrated by this example. Most current microprocessors are capable of out-of-order issue and completion. This model, also referred to as dynamic instruction issue, exploits maximum instruction level parallelism. The processor uses a window of instructions from which it selects instructions for simultaneous issue. This window corresponds to the look-ahead of the scheduler.

The performance of superscalar architectures is limited by the available instruction level parallelism. Consider the example in Figure 2.1. For simplicity of discussion, let us ignore the pipelining aspects of the example and focus on the execution aspects of the program. Assuming two execution units (multiply-add units), the figure illustrates that there are several zero-issue cycles (cycles in which the floating point unit is idle). These are essentially wasted cycles from the point of view of the execution unit. If, during a particular cycle, no instructions are issued on the execution units, it is referred to as vertical waste; if only part of the execution units are used during a cycle, it is termed horizontal waste. In the example, we have two cycles of vertical waste and one cycle with horizontal waste. In all, only three of the eight available cycles are used for computation. This implies that the code fragment will yield no more than three-eighths of the peak rated FLOP count of the processor. Often, due to limited parallelism, resource dependencies, or the inability of a processor to extract parallelism, the resources of superscalar processors are heavily under-utilized. Current microprocessors typically support up to four-issue superscalar execution.

2.1.2 Very Long Instruction Word Processors

The parallelism extracted by superscalar processors is often limited by the instruction look-ahead. The hardware logic for dynamic dependency analysis is typically in the range of 5-10% of the total logic on conventional microprocessors (about 5% on the four-way superscalar Sun UltraSPARC). This complexity grows roughly quadratically with the number of issues and can become a bottleneck. An alternate concept for exploiting instruction-level parallelism used in very long instruction word (VLIW) processors relies on the compiler to resolve dependencies and resource availability at compile time. Instructions that can be executed concurrently are packed into groups and parceled off to the processor as a single long instruction word (thus the name) to be executed on multiple functional units at the same time.

The VLIW concept, first used in Multiflow Trace (circa 1984) and subsequently as a variant in the Intel IA64 architecture, has both advantages and disadvantages compared to superscalar processors. Since scheduling is done in software, the decoding and instruction issue mechanisms are simpler in VLIW processors. The compiler has a larger context from which to select instructions and can use a variety of transformations to optimize parallelism when compared to a hardware issue unit. Additional parallel instructions are typically made available to the compiler to control parallel execution. However, compilers do not have the dynamic program state (e.g., the branch history buffer) available to make scheduling decisions. This reduces the accuracy of branch and memory prediction, but allows the use of more sophisticated static prediction schemes. Other runtime situations such as stalls on data fetch because of cache misses are extremely difficult to predict accurately. This limits the scope and performance of static compiler-based scheduling.

Finally, the performance of VLIW processors is very sensitive to the compilers' ability to detect data and resource dependencies and read and write hazards, and to schedule instructions for maximum parallelism. Loop unrolling, branch prediction and speculative execution all play important roles in the performance of VLIW processors. While superscalar and VLIW processors have been successful in exploiting implicit parallelism, they are generally limited to smaller scales of concurrency in the range of four- to eight-way parallelism.
