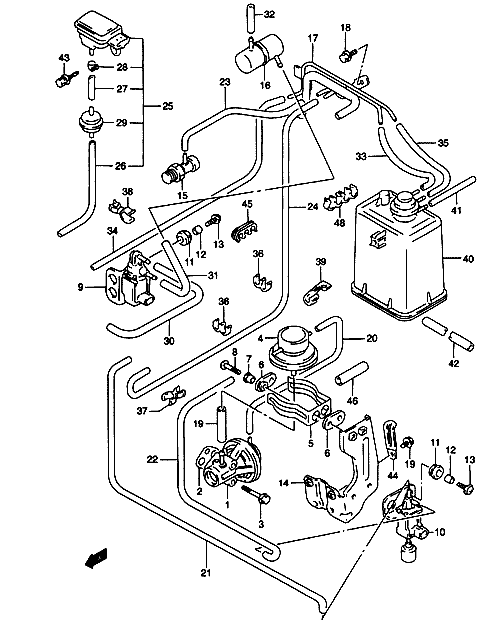

55.Emisszió kontroll SF413 ALVÁZSZÁM!!
 FõmenüVissza az elejéreVisszaElõreJelmagyarázat
VAN, GL, GC ALVÁZSZÁM: 404640-IG
1 18111-86010 VALVE EGR 1
2 18529-60A00 GASKET EGR VALVE 1
3 01550-06453 BOLT 2
4 18112-60B00 MODULATORASSY EGR 1
5 13814-82000 CLAMP MODULATOR 1
6 13815-82000 CUSHION MODULATOR 2
7 13817-82000 SPACER MODULATOR 2
8 02142-06163 SCREW 2
9 18117-60B10 VALVE ISC 1
10 18117-60B00 VALVE. 3WAY SOLENOID 1
11 09308-10004 GROMMET 4
12 09180-06106 SPACER (6.8X10X7) 4
13 09136-06133 SCREW 4
14 18451-63B02 BRACKET VSV 1
15 18123-60B00 VALVE BVS 1
16 18145-60B00 SILENCER ISC VALVE 1
17 18340-80EC1 PIPE VACUUM 1
18 01550-06123 BOLT 1
19 18471-63B10 HOSE MODULATOR 1
20 09355-35754-601 HOSE. VACUUM 1 L:6O1-2O0
21 09355-35754-601 HOSE VACUUM 1 L:6Ol-24O
22 09355-35754-601 HOSE VACUUM 1 L:60l-340
23 09355-35754-601 HOSE. VACUUM 1 L:601-l8O
24 09355-35754-601 HOSE. VACUUM 1 L:6O1-46O
25 18500-60810 SENSOR KIT. PRESSURE 1
26 09355-35754-601 HOSE VACUUM 1 L:6O1-22O
27 09355-35754-601 HOSE PRESSURE SENSOR 1 L:6O1-3O
28 09401-06405 CLIP 1
29 18133-81150 FILTER GAS 1
30 09355-54115-600 HOSE ISC VALVE 1 L:600-140
31 18144-60B00 HOSE ISC VALVE 1
32 09355-54115-600 HOSE ISC VALVE 1 L:600-40
33 09355-35754-601 HOSE VACUUM 1 L:600-160
34 09355-40805-600 HOSE CANISTER PURGE 1 L:600-160
35 09355-40805-600 HOSE CANISTERPURGE 1 L:600-150
36 09408-00033 CLIP VACUUM HOSE 4
37 09408-00102 CLIP.VACUUMHOSE 1
38 09408-00124 CLIP VACUUMHOSE 1
39 09403-09315 CLAMP VACUUM HOSE 1
40 18560-60B00 CANISTER 1
41 09355-45855-600 HOSE. CANISTER INLET 1 L:600-120
42 09355-70125-600 HOSE. PURGE AIR SUCTiON 1 L:600-340
43 09115-06001 BOLT(6x16) 1
44 09404-06413 CLAMP. VACUUM HOSE 1
45 09408-00094 CLAMP. ISC HOSE 1
46 09352-13162-600 PROTECTOR 1 L:6OO-16O
47 09251-07003 PLUG. AIR CON 2
48 09408-00035 CLAMP 1
