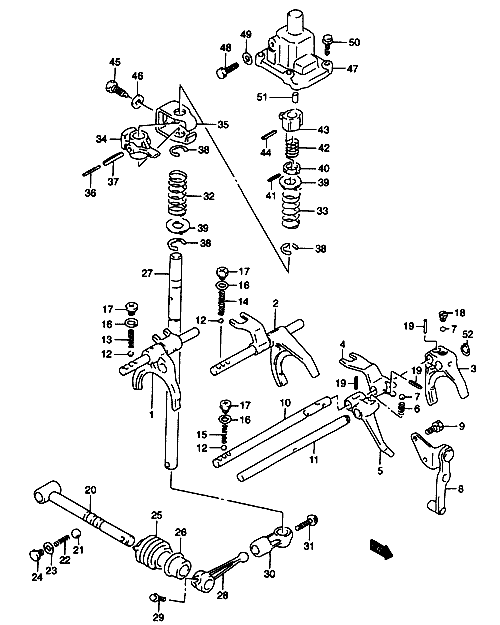

66.Váltó kaocsoló rendszer, SF310 SF413 MT
 FõmenüVissza az elejéreVisszaElõreJelmagyarázat
1 25401-60B00 SHAFT ASSY. LOW SPEED GEAR SHIFT 1
2 25402-60B00 SHAFT ASSY. HIGH SPEED GEAR SHIFT 1
3 25231-60B50 FORK 5TH GEAR SHiFT 1
4 25261-60B01 YOKE STH/REVGEARSHIFT 1
5 25251-60B50 ARM. REVERSEGEARSHIFT 1
6 25255-60B01 SPRING ARM 1
7 06111-10003 BALL 3
8 25460-72F00 LEVER. REVERSE GEAR SHIFT 1
9 01570-08203 BOLT 2
10 25451-60B51 SHAFT. 5TH/REV GEAR SHIFT 1
11 25431-60B51 SHAFT.5TH/REVGEARSHIFT GUIDE 1
12 06111-10003 BALL 3
13 25415-60B02 SPRING 1
14 25425-60B10 SPRING 1
15 25415-60B02 SPRING 1
16 08322-01103 WASHER 3
17 09128-10002 BOLT(10X9) 3
18 09248-10006 PLUG 1
19 09205-04015 PIN(L:20) 3
20 25510-60B01 SHAFT. GEAR SHIFT 1
21 06111-10003 BALL 1
22 25515-60B01 SPRING 1
23 09168-10007 GASKET 1
24 09128-10002 BOLT 1
25 25595-82000 BOOT. GEAR SHIFT SHAFT 1
26 25517-60B01 SEAL GEAR SHIFT SHAFT OIL 1
27 25571-60E50 SHAFT GEAR SHIFT/SELECT 1
28 25521-60B02 ARM GEAR SHIFT 1
29 25701-60B10 BOLT 1
30 25531-60B01 YOKE GEAR SHIFT 1
31 25701-60B10 BOLT 1
32 25576-60D00 SPRING 1
33 25577-60B01 SPRING 1
34 25541-74B00 LEVER GEARSHIFT/SELECT 1
35 25311-60B20 PLATE GEARSHIFT INTERLOCK 1
36 09205-03016 PIN (OD:3.7.L:28) 1
37 09205-06004 PIN (OD:6.3.L:28) 1
38 08332-11126 ERING 3
39 08212-14301 WASHER 4
40 25582-60B51 GUIDE 5TH/REV GEAR SHIFT CAM 1
41 09205-03020 PIN (L:22) 1
42 25583-60B50 SPRING 1
43 25581-50F00 CAM. 5TH/REV GEAR SHIFT 1
44 09205-04015 PIN (L:2O) 1
45 25321-60B01 BOLT 1
46 08322-01103 WASHER 1
47 25570-60B50 CASE GEAR SHIFT GUIDE 1
48 25584-70C00 BOLT 1
49 08322-01083 WASHER 1
50 01550-06253 BOLT 4
51 04221-06129 PIN 2
52 08331-31126 CIRDLIP 1
