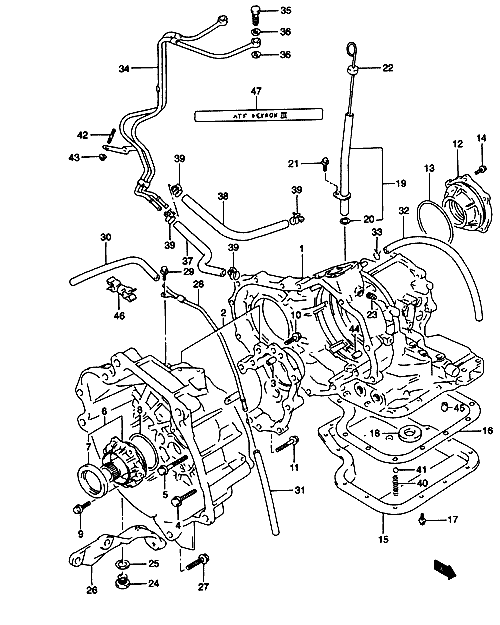

87.Váltóház
AT SF416
| 1 | 24710-72C00 | CASE ASSY TRANSMISSION | 1 | |
| 2 | 24720-72C00 | CASE ASSY HOUSING | 1 | |
| 3 | 25915-71B70 | PIN | 1 | |
| 4 | 01550-10403 | BOLT | 12 | |
| 5 | 01550-10503 | BOLT | 2 | |
| 6 | 24730-72C00 | COVER ASSY OUTPUT SHAFT | 1 | |
| 7 | 24732-72C00 | SEAL OIL | 1 | |
| 8 | 24733-72C00 | ORING | 1 | |
| 9 | 24734-72C00 | BOLT | 6 | |
| 10 | 01550-08253 | BOLT | 4 | |
| 11 | 01550-08403 | BOLT | 4 | |
| 12 | 24741-72C00 | HOUSING SIDE BEARING | 1 | |
| 13 | 24742-72C00 | ORING | 1 | |
| 14 | 01550-08203 | BOLT | 6 | |
| 15 | 24761-72C01 | PAN TRANSMISSION OIL | 1 | |
| 16 | 24784-72C01 | GASKET TRANSMISSION OIL PAN | 1 | |
| 17 | 01550-06123 | BOLT | 16 | |
| 18 | 24861-71B70 | MAGNET | 1 | |
| 19 | 24770-72C00 | TUBE ASSY OlL FILLER | 1 | |
| 20 | 24785-72C00 | ORING | 1 | |
| 21 | 24772-61D00 | BOLT | 1 | |
| 22 | 24830-72C01 | GAUGE. TRANSMISSION OIL LEVEL | 1 | |
| 23 | 24822-58E00 | PLUG | 3 | |
| 24 | 24823-71B70 | PLUG DRAIN | 1 | |
| 25 | 09160-18018 | GASKET. PLUG (18X24X2) | 1 | |
| 26 | 24791-70C00 | STlFFENER. MISSION CASE LOWER | 1 | |
| 27 | 01550-10403 | BOLT | 1 | |
| 28 | 24895-72C01 | PIPE VACUUM | 1 | |
| 29 | 24772-61D00 | BOLT | 2 | |
| 30 | 09355-35754-601 | HOSE | 1 | L:601-440 |
| 31 | 09355-54115-600 | HOSE | 1 | L:600-180 |
| 32 | 09355-54115-600 | HOSE | 1 | L:600-250 |
| 33 | 09401-11403 | CLIP | 1 | |
| 34 | 24893-72C01 | PIPE OIL COOLER | 1 | |
| 35 | 09360-12007 | BOLT (12X25) | 2 | |
| 36 | 09168-12017 | GASKET(12x17x1) | 4 | |
| 37 | 24892-72C01 | HOSE OIL INLET | 1 | |
| 38 | 24891-72C01 | HOSE. OILOUTLET | 1 | |
| 39 | 09401-12409 | CLAMP | 4 | |
| 40 | 24899-72C00 | SPRING | 1 | |
| 41 | 25962-72C00 | BALL | 1 | |
| 42 | 01421-06123 | STUDBOLT | 1 | |
| 43 | 08316-10063 | NUT | 1 | |
| 44 | 24724-72C00 | PIN | 2 | |
| 45 | 24726-72C00 | PIN | 2 | |
| 46 | 09408-00136 | CLAMP.VACUUMHOSE | 1 | |
| 47 | 24839-61A31 | EMBLEM. ATF | 1 |
