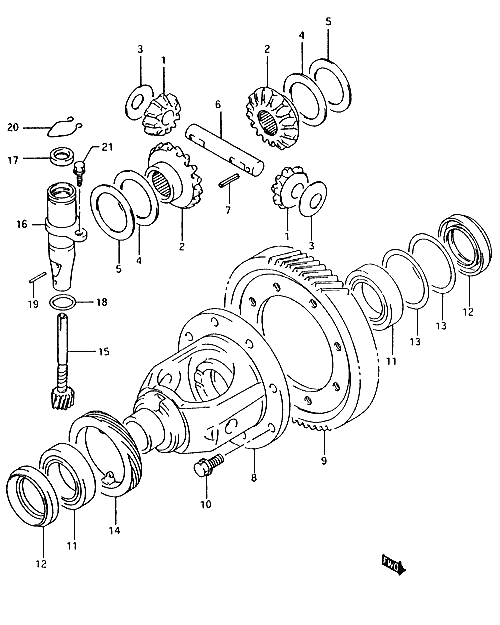

98.Differenciálmû SF416 AT
 FõmenüVissza az elejéreVisszaElõreJelmagyarázat
1 27331-72C00 PINION differential 2
2 27341-72C00 GEAR differential 2
3 27332-72C00 WASHER pinion 2
4 27343-72C00 WASHER gear No.2 2
5-1 27342-72C00-070 WASHER gear 0-2 T:0.7
5-2 27342-72C00-080 WASHER gear 0-2 T:0.8
5-3 27342-72C00-090 WASHER gear 0-2 T:0.9
6 27351-72C00 SHAFT pinion 1
7 27352-72C00 PIN 1
8 27300-72850 CASE differential 1
9 27511-72C00 GEAR fiNal 1
10 27521-72C00 BOLT 8
11 27421-72C00 BEARING differential side 2
12 27611-72C00 OIL SEAL 2
13-1 27612-72C00-100 SHIM D1FF side bearing No.1 0-1 T:l.0
13-2 27612-72C00-120 SHIM D1FF side bearing No.2 0-1 T:l.2
13-3 27612-72C00-140 SHIM D1FF side bearing No.3 0-1 T:l.4
14 26121-72C00 GEAR speedometer drive 1
15 26131-64B01 GEAR speedometer driven 1
16 29431-60B02 CASE speedometer driven gear 1
17 09282-08001 OIL SEAL 1
18 09280-16012 0 RING 1
19 09205-03012 PIN (L:16) 1
20 26191-61D01 CLIP speedometer case 1
21 01550-06163 BOLT 1
