Figures 7-3 to 7-5 together show a design-level class diagram for our Internet Bookstore. (The classes on the left side of Figure 7-3 match up with those on the right side of Figure 7-2. Figure 7-4 has a similar relationship with Figure 7-3.)

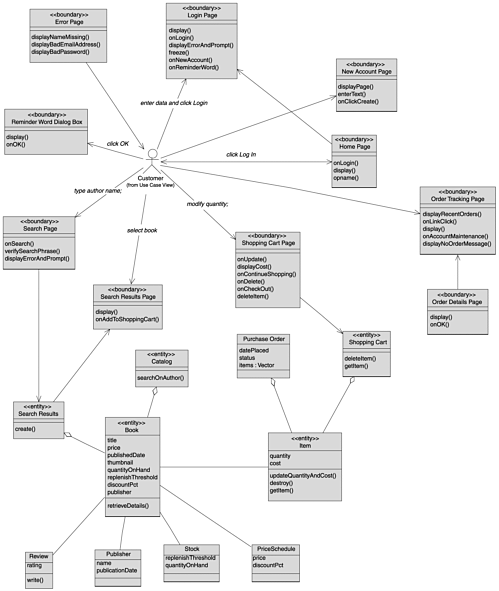

Figure 7-3. Static Model for The Internet Bookstore (Part 1)

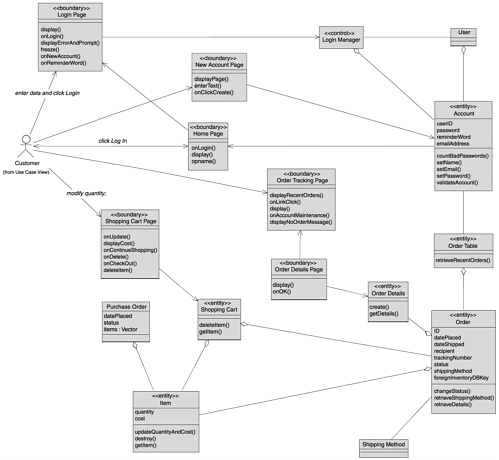

Figure 7-4. Static Model for The Internet Bookstore (Part 2)

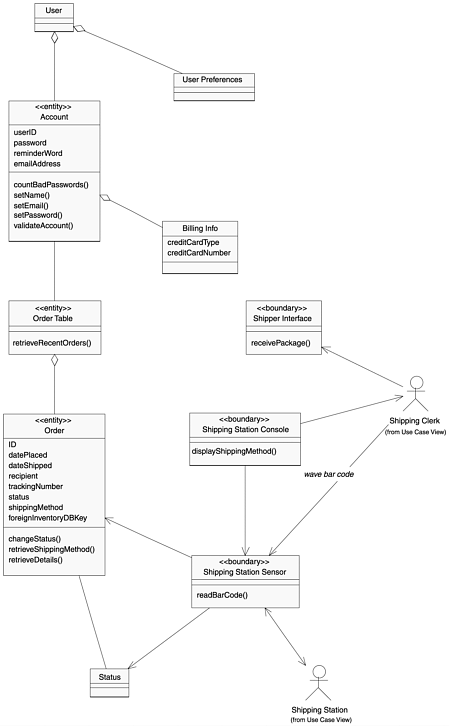

Figure 7-5. Static Model for The Internet Bookstore (Part 3)
