My first tweak was an Onkyo DX7711 Integra CD-player.
![]() |
Left This is the Onkyo DX7711 Integra CD player inside, originally.
| |
![]() |
Left

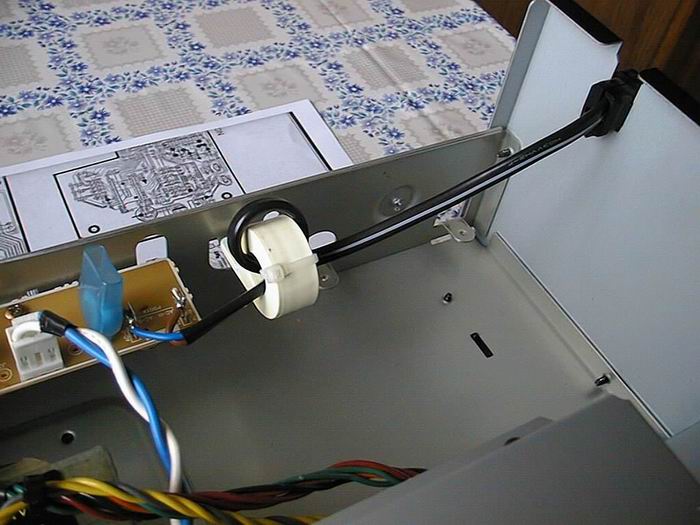

The original power cord and AC inlet.

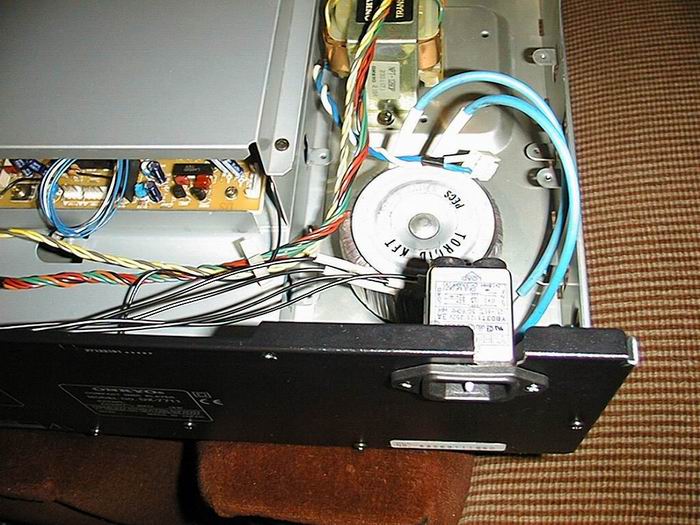

Right The modified AC inlet: IEC socket with filter Toroid transformer also added for analog stage. The transformer is rated for 60VA, 2x15V |
![]() |
![]() |
Left

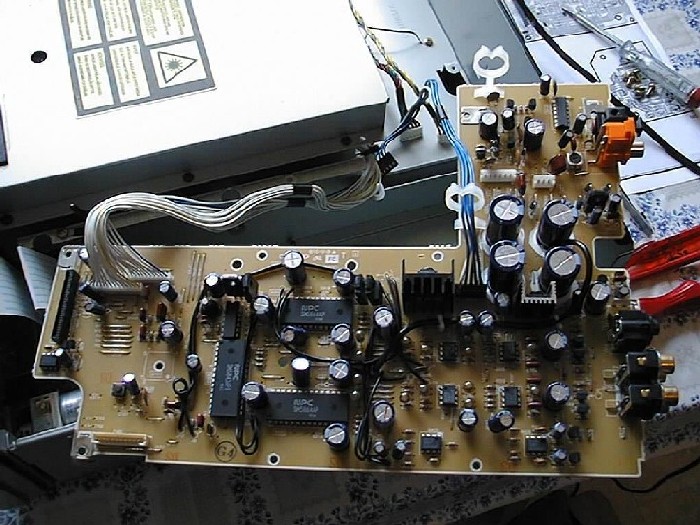

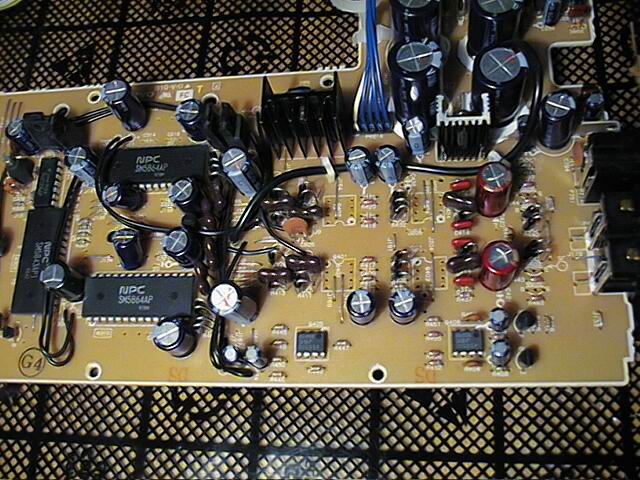

The disassembled PCB Right In the middle of upgrade. Most of the resistors and Silver Mica capacitors installed. ELNA Cerafine output capacitor also installed, muting transistors out. |
![]() |
![]() |
Left

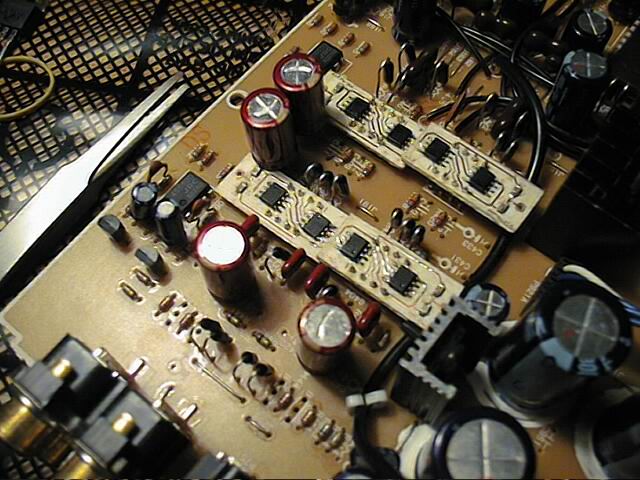

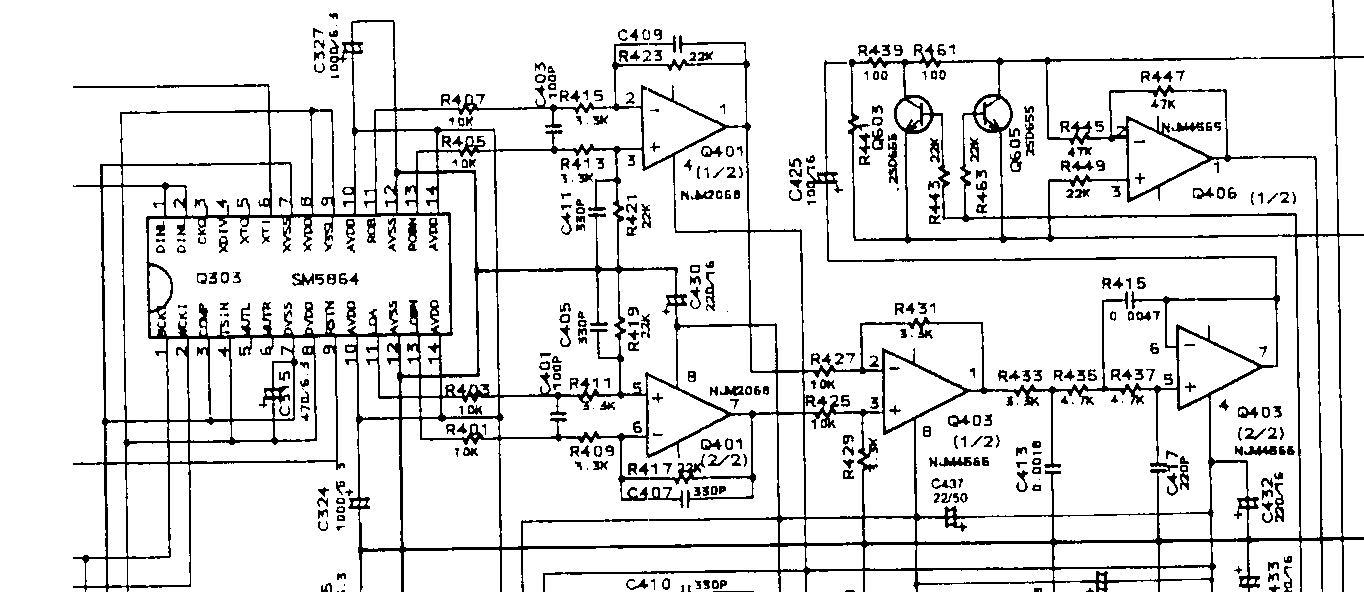

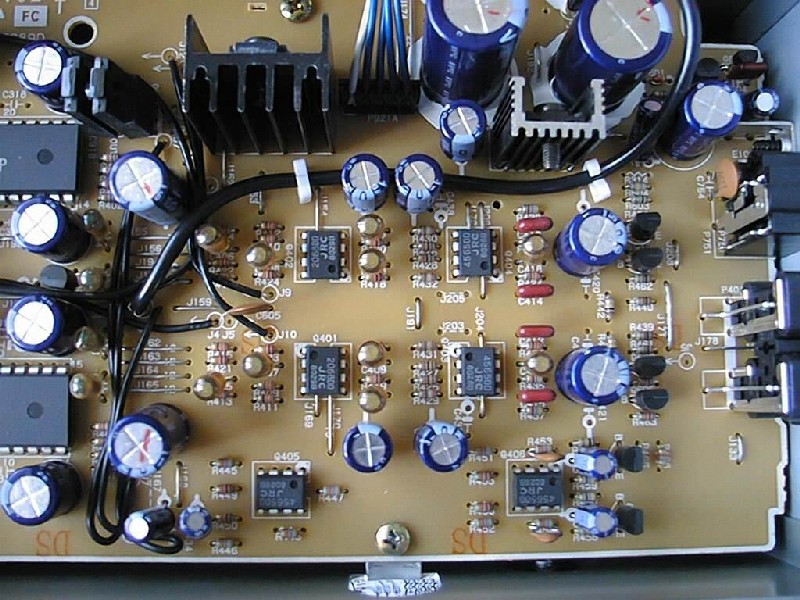

The original analog stage. Right The schematic of analog stage (one channel shown) |
![]() |
![]() |
Left
The opamp modules assembled to PCB. The opamp is OPA627 AU

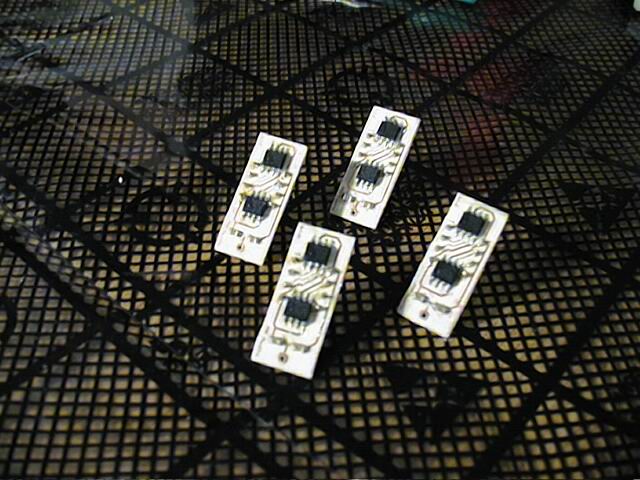

Right The assembled opamp modules offline. Each module consist 2 pcs OPA627 and 2pcs 100nF 0805 size ceramic capacitors. |
![]() |
![]() |

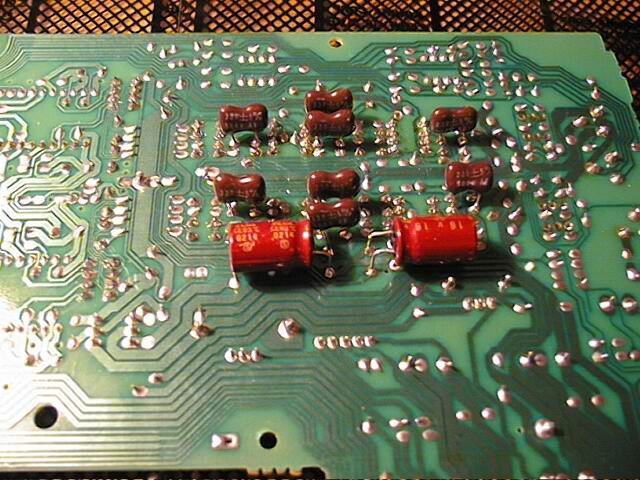

Left The back side of the PCB. For many capacitors (Silver Mica and Elna Cerafine) only here was enough place. |
|
![]() |
Left

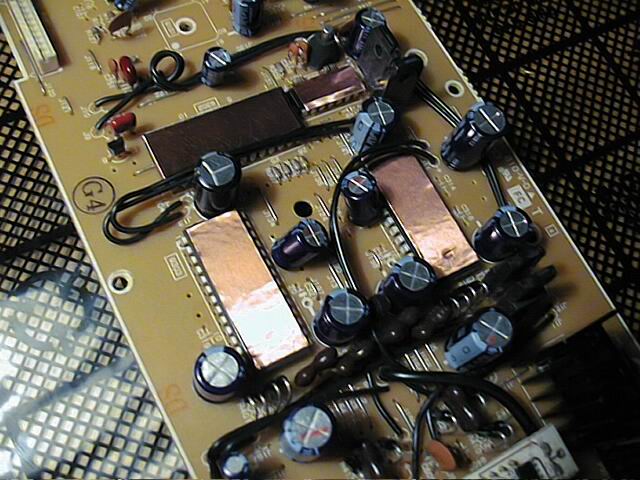

The DACs and receiver IC are shielded by 3M shielding tape (# )

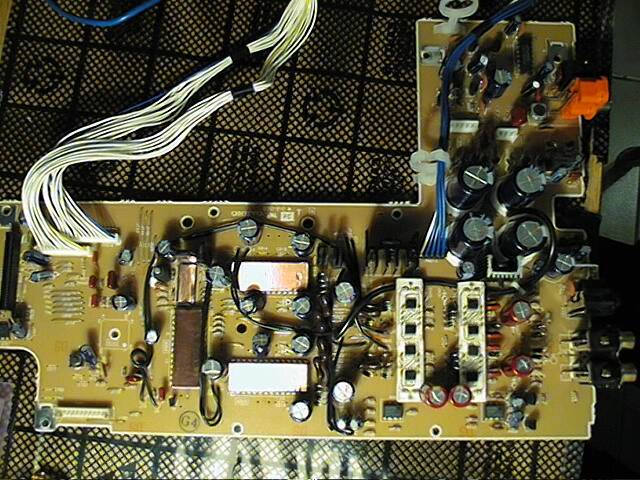

Right The upgraded PCB, before assembly |
![]() |
![]() |
Left

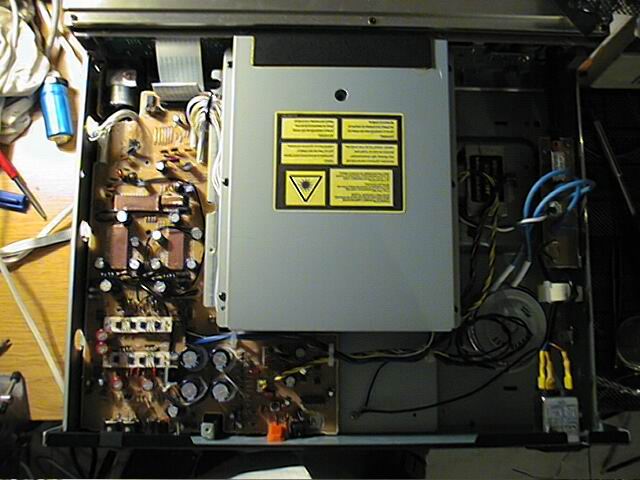

The assembled CD player

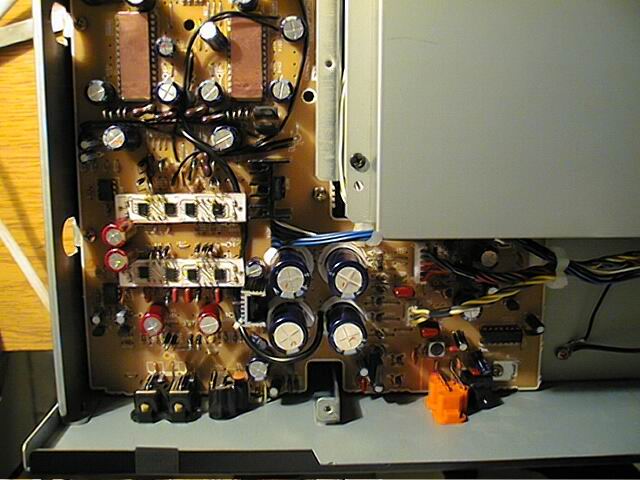

Right Some details... |
![]() |
What is done additionaly?
- All PS diodes replaced with OnSemi MUR series ultrafast diodes
What is left?
- DAC clock modification (kwak Clock 7 probably)
- Regulator upgrades (Walter Jung regulator)
- PS capacitor change (Black Gate)
UPDATE COMING SOON!!!
Components:
- Elna Cerafie capacitors
- Holco H2 and H2 audiophile resistors
- AD825 opamps
- MUR815 high ultrafast diodes
- Toroidal transformer for analouge stage
- IEC filter AC inlet
Future plan:
- Pass D1 analouge stage... :)
All the things here only for DIY Audio hobby. Not for commercial use!
