Fish anatomy is primarily governed by the physical
characteristics of
water, which is much denser than air, holds a relatively
small amount of dissolved oxygen, and absorbs light more than does air.

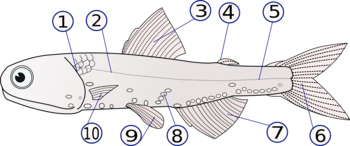

Nearly all fish have a streamlined body plan, which is divided into head, trunk, and tail,
although the dividing points are not always externally
visible.
The head includes the snout, from the eye to the
forwardmost point of the upper jaw, the operculum or gill
cover, (absent in sharks) and the cheek, which extends from
eye to preopercle. The lower jaw defines a chin. The head
may have several fleshy structures known as barbels, which
may be very long and resemble whiskers. Many fish species
also have a variety of protrusions or spines on the head.
The nostrils or nares of almost all fishes do not connect to the
oral cavity, but are pits of varying shape and depth.
The outer body of many fish is covered with scales. Some
species are covered instead by scutes. Others have no outer covering on the skin;
these are called naked fish. Most fish are covered in
a protective layer of slime (mucus).
The lateral line is a sense organ used to detect
movement and vibration in the surrounding water. It consists
of a line of receptors running along each side of the fish.
The caudal peduncle is the narrow part of the fish's body
to which the caudal or tail fin is attached. The hypural
joint is the joint between the caudal fin and the last
of the vertebrae.
Photophores are light-emitting organs which appears as
luminous spots on some fishes. The light can be produced
from compounds during the digestion of prey, from
specialized mitochondrial cells in the organism called
photocytes, or associated with symbiotic bacteria, and are used for attracting food or confusing
predators
Fins
The
fins
are the most distinctive features of a fish.
Bigeye tuna Thunnus obesus showing
finlets and keels.
Drawing by Dr Tony Ayling
The dorsal fins are located on the back. A fish can
have up to three of them. There are two types of dorsal
fin rays, spiny and soft. A fin can contain only spiny
rays, only soft rays, or a combination - if the latter
the spiny rays are always anterior. These comments about fin rays also apply
to the anal, pectoral, and pelvic fins. The dorsal fin
serves to protect the fish against rolling and assist in
sudden turns and stops.
The caudal fin is the tail fin, located at
the end of the caudal peduncle.
The anal fin is located on the ventral surface
behind the anus. This fin is used to stabilize the fish while
swimming.
The paired pectoral fins are located on each side,
usually just behind the operculum, and are homologous to
the forelimbs of tetrapods.
The paired pelvic or ventral fins are located
ventrally below the pectoral fins. They are homologous
to the hindlimbs of tetrapods.
The adipose fin is a soft, fleshy fin found
on the back behind the dorsal fin and just forward of
the caudal fin. It is absent in many fish families, but
is found in
Salmonidae,
characins and
catfishes.
Some types of fast-swimming fish have a horizontal
caudal keel just forward of the tail fin. This is
a lateral ridge on the caudal peduncle, usually composed
of scutes (see below), that provides stability and
support to the caudal fin. There may be a single paired
keel, one on each side, or two pairs above and below.
The "horns" of manta rays and their relatives are
called cephalic fins.
Finlets are small, rayless, non-retractable, fins
between the last dorsal and/or anal fin and the caudal
fin. They are found on fast swimming fish such as tuna.
For every fin, there are a number of fish species in
which this particular fin has been lost during evolution.
Scales
types of caudal fin :
(A) - Heterocercal, (B) - Protocercal,
(C) - Homocercal, (D) - Diphycercal

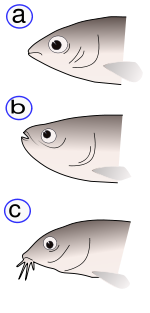

Positions of the fish's mouths:
(a) - final,
(b) - upper,
(c) - bottom
There are four types of fish scales.
Placoid scales, also called dermal denticles, are
similar to teeth in that they are made of dentin covered
by enamel. They are typical of sharks and rays.
Ganoid scales are flat, basal-looking scales that
cover a fish body with little overlapping. They are
typical of gar.
Cycloid scales are small oval-shaped scales
with growth rings.
Bowfin and
remora have cycloid scales.
Ctenoid scales are similar to the Cycloid scales,
with growth rings. They are distinguished by the spines
that cover one edge. Halibut have this type of scale.
Another, less common, type of scale is the scute,
which is:
an external shield-like bony plate, or
a modified, thickened scale that often is keeled or
spiny, or
a projecting, modified (rough and strongly ridged)
scale, usually associated with the lateral line, or on
the caudal peduncle forming caudal keels, or along the
ventral profile.
Some fish (eg
pineconefish) are completely or partially covered in
scutes.
Internal organs
The gas bladder, or swim bladder, is an internal
organ that contributes to the ability of a fish to
control its buoyancy, and thus to stay at the current
water depth, ascend, or descend without having to waste
energy in swimming. It is often absent in fast swimming
fishes such as the Tuna and Mackerel families.
The gills, located under the operculum, are a
respiratory organ for the extraction of oxygen from
water and for the excretion of carbon dioxide. They are
not usually visible, but can be seen in some species eg
the frilled shark.
Gill rakers are bony, finger-like projections
of the gill arch filaments which function in retaining
food organisms.
